A Complete Guide to Steel Pipe Manufacturing: Seamless, ERW, SSAW, and LSAW Explained

1. Why Do Steel Pipes Require Different Manufacturing Methods?

The choice of manufacturing process depends mainly on:

• Outside diameter (OD)
• Wall thickness (WT)
• Steel grade (Q-series, API 5L X-series, etc.)
• Working pressure and temperature
• Dimensional tolerance requirements
• Production capacity and investment budget

From an engineering standpoint, steel pipes fall into two major categories:

1. Seamless Pipes – no weld seam, highest strength
2. Welded Pipes – ERW, SSAW, and LSAW (UOE/JCOE)

Each category fits different industrial needs and cost structures.

2. Seamless Pipes (Hot Rolling / Hot Piercing Processes)

Seamless pipes are produced through a hot piercing and elongation process, mainly used for applications requiring
high pressure, high temperature, and strong resistance to corrosion.

2.1 Main Technologies

• Mannesmann Piercing (斜轧穿孔)

A heated round billet (approximately 1200°C) is pierced to create a hollow shell, which is then elongated and sized to the required dimensions.

• Mandrel Mill

The mandrel mill improves inner and outer diameter accuracy and wall thickness uniformity through multiple rolling stands with a mandrel bar.

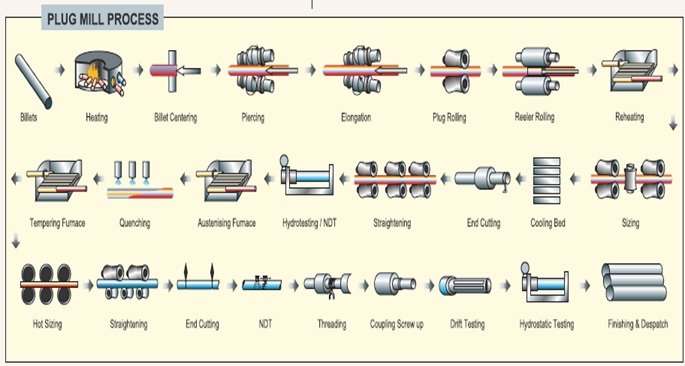

• Plug Mill

Plug mills are suitable for thicker-wall pipes and provide good control over heavy-wall seamless products.

• Stretch Reducing Mill (SRM)

The SRM is used for final sizing of OD and WT, improving dimensional precision and surface quality.

2.2 Advantages

• No weld seam → continuous strength
• Suitable for API OCTG, boiler tubes, heat-exchanger tubes
• Excellent pressure and temperature resistance

2.3 Limitations

• Highest investment and production cost
• Usually OD ≤ 20–28 inches

For buyers, seamless pipe mills are typically chosen by large integrated steel groups due to the high investment level.

3. Welded Pipes: ERW, SSAW, and LSAW

3.1 ERW Pipe (Electric Resistance Welding)

ERW pipes are produced by continuously forming a strip and welding the seam using high-frequency resistance heat.

Typical Range

• OD: 1/2″ – 26″
• WT: usually ≤ 16 mm

Advantages

• High dimensional accuracy
• Smooth surface appearance
• High production speed
• Cost-effective for medium and low-pressure applications

Common Applications

Water pipes, scaffolding, furniture tubes, automotive tubes, and general construction structures.

3.2 Spiral Welded Pipe (SSAW

SSAW pipes are formed by winding the strip at a certain angle into a spiral shape, then welding the seam with submerged arc welding.

Typical Range

• OD: 400–3000 mm
• WT: up to 25 mm

Advantages

• Very large diameters possible
• High productivity
• Lower equipment cost compared with LSAW
• Suitable for low-pressure, large-volume pipelines

Applications

Municipal water supply, pile foundations, and low-pressure oil & gas transport.

3.3 LSAW Pipe (Longitudinal Submerged Arc Welding)

LSAW pipes, especially those produced by UOE and JCOE processes, are used in
high-strength, long-distance oil & gas transmission (API 5L X60–X80 and above).

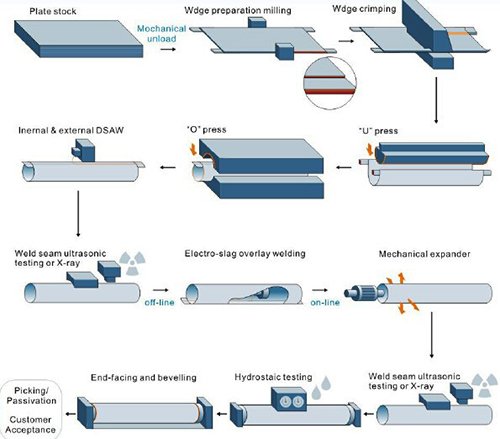

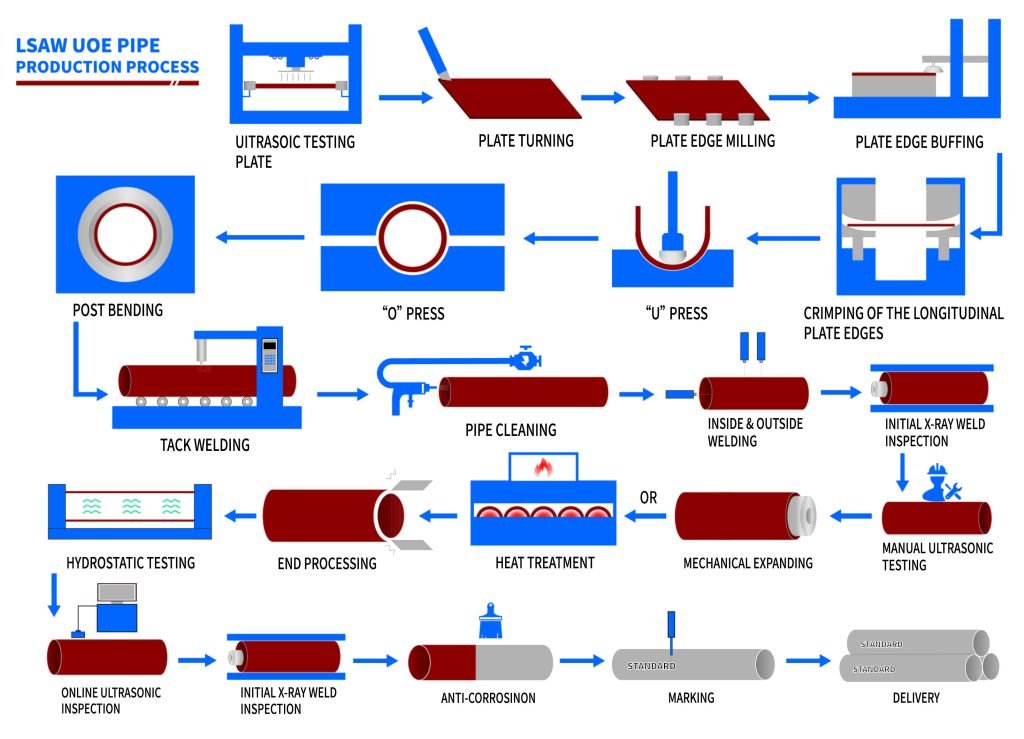

3.3.1 UOE Process

Main Steps

• U-forming
• O-forming
• Internal weld
• External weld
• Mechanical expansion

Characteristics

• Extremely high dimensional accuracy
• Very stable performance under high pressure
• High investment and relatively slower cycle time

3.3.2

The JCOE method forms the plate progressively:

• J-bend
• C-bend
• O-bend
• Submerged arc welding
• Expansion

Characteristics

• More flexible and lower investment than UOE
• Excellent dimensional precision
• The most common method for producing large-diameter straight-seam pipes

Applications

Gas pipelines, oil pipelines, offshore engineering, and structural piles.

4. How to Choose the Right Manufacturing Method

4.1 By Diameter

• OD < 4″ – ERW or Seamless
• OD 4″–20″ – ERW for structural tubes; Seamless for high pressure
• OD > 20″ – LSAW or SSAW

4.2 By Pressure Requirements

• High pressure – Seamless / LSAW
• Medium pressure – ERW
• Low pressure / large volume – SSAW

4.3 By Steel Grade

• API X60–X80 and above – LSAW is preferred
• Q235–Q345 structural grades – ERW or SSAW

4.4 By Investment Budget

• Highest – Seamless mill
• High – LSAW (UOE/JCOE)
• Medium – ERW
• Lowest – SSAW

5. Typical Equipment Configurations (What Buyers Should Expect)

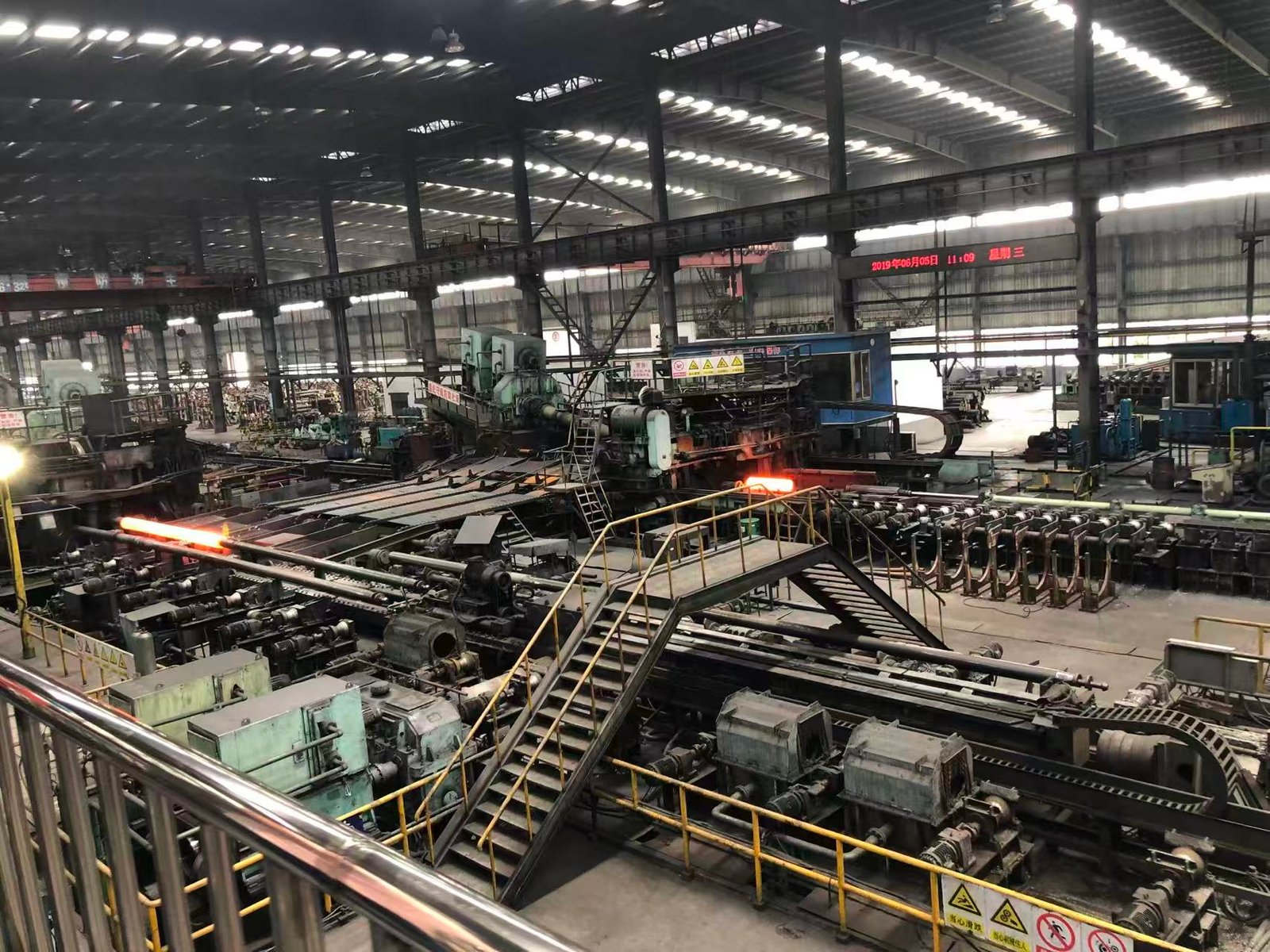

5.1 Seamless Pipe Line

• Heating furnace
• Piercing mill
• Mandrel / Plug mill
• Stretch Reducing Mill (SRM)
• Straightener
• Cut-to-length systems
• NDT testing and inspection

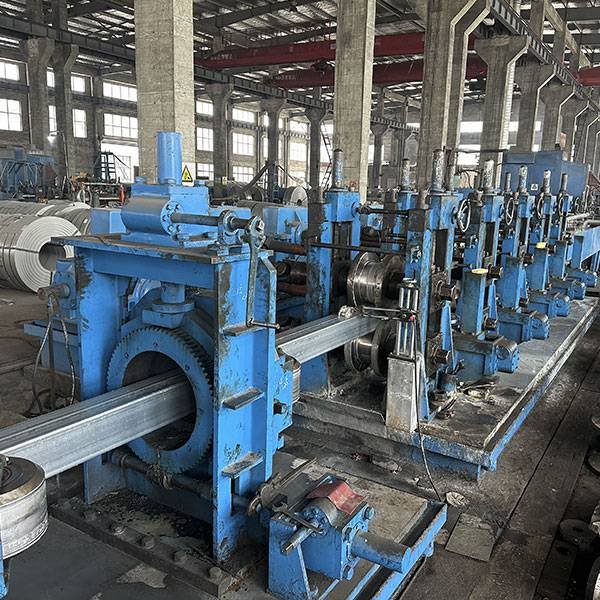

5.2 ERW Pipe Line

• Uncoiler
• Slitting line (if needed)
• Forming section
• High-frequency welder
• Sizing and straightening section
• Cut-off saw
• Automatic stacking and bundling

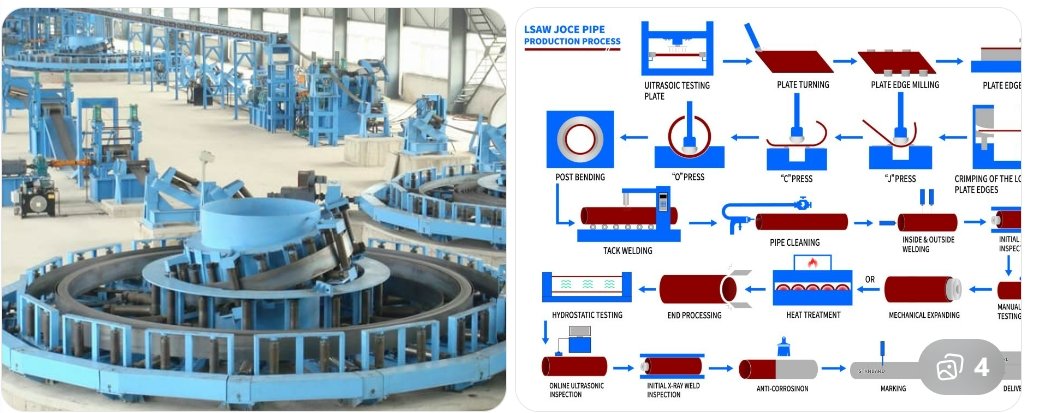

5.3 JCOE Pipe Line

• Heavy-duty uncoiler
• Edge milling machine
• Pre-bending machine
• J-C-O forming press
• Internal and external SAW welding stations
• Mechanical expander
• Ultrasonic testing (UT) and other NDT

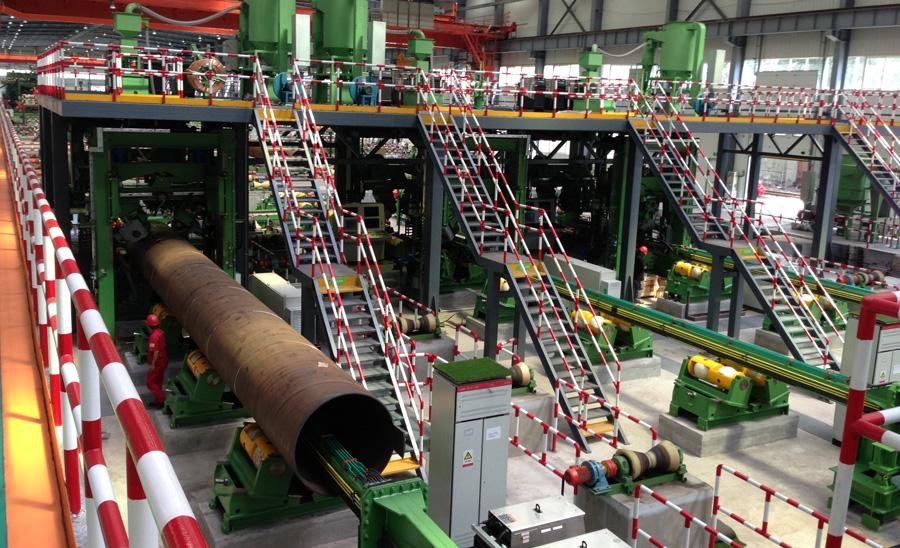

5.4 SSAW Pipe Line

• Uncoiler
• Spiral forming section
• Internal & external SAW welding
• Plasma cutting
• Pipe expander
• NDT inspection and hydrostatic testing

6. Why Work with an Independent Sourcing Agent in China?

Choosing a pipe manufacturing technology is both technical and commercial.
As an independent procurement agent, my goal is to ensure you receive:

6.1 The Optimal Technical Solution

Not all factories specialize in all types of pipe-making equipment.
I help buyers match their needs with the right manufacturer, not simply the most expensive one.

6.2 Transparent Comparison of Multiple Suppliers

Including:

• Technical capability and design strength
• Actual project references and running lines
• Cost structure and quotation transparency
• Delivery time and installation schedule
• After-sales service and spare parts support

6.3 Risk Control

Avoiding mismatched equipment, over-pricing, or incomplete scope is critical for long-term success.
I help verify technical details, scope of supply, and contract terms.

6.4 One-Stop Project Support

From preliminary consultation and specification confirmation, through factory screening and technical meetings,
to pre-shipment inspection and third-party testing, I provide full project support from China.

7. Conclusion

The steel pipe industry covers a wide range of forming technologies, each with its own strengths.
Whether you are building an oil & gas pipeline mill, a structural ERW facility, or a municipal SSAW line,
choosing the right manufacturing process is crucial for long-term performance and investment efficiency.

As a sourcing agent deeply familiar with China’s steel-processing machinery ecosystem,
I can help you evaluate options and find the most economical and reliable solution for your production goals.
