Coil Processing Line Uncoiling | Leveling | Cut-To-Length | Slitting Solutions
Coil Processing Line Solution
Uncoiling | Leveling | Cut To Length | Slitting
Our coil processing line is designed for converting metal coils into flat sheets or narrow strips with high precision and stable performance.
Suitable for steel service centers, fabrication factories, and metal processing plants.
Available Configurations
1. Uncoiling + Leveling + Cut To Length Line
Used for producing flat sheets in fixed lengths with high flatness and accuracy.
2. Uncoiling + Slitting Line
Used for producing multiple narrow strips from wide coils.
3. Full Combined Line
Uncoiling + Leveling + Slitting + Cut-to-Length integrated solution based on customer production needs.
Process Flow
Cut-To-Length Line
Coil Car → Hydraulic Decoiler → Feeder → Precision Leveler → Shearing Machine → Stacker
Slitting Line
Coil Car → Decoiler → Slitting Machine → Scrap Winder → Tension Unit → Recoiler
Key Advantages
- High precision leveling for excellent flatness
- Clean slitting edges with minimal burr
- Heavy-duty machine structure for long-term stability
- High production efficiency and continuous operation
- Custom-built according to material and capacity
- Easy operation with PLC or CNC control option
- Low maintenance and durable components
- Safety protection with emergency stop and covers
Technical Parameters (Typical Range)
| Item | Specification |
|---|---|
| Coil Width | 600 – 2000 mm (customizable) |
| Thickness Range | 0.2 – 16 mm (customizable) |
| Coil Weight | 5 – 30 Tons |
| Line Speed | 0 – 120 m/min |
| Cut Length Accuracy | ±0.5 mm |
| Slitting Strips | 3 – 20 strips |
| Control System | Manual / PLC / CNC optional |
Material Application
- Carbon Steel
- Stainless Steel
- Aluminum
- Galvanized Steel
- PPGI
Industries
- Steel service centers
- Construction materials factories
- Electrical cabinet production
- Automotive parts
- Light pole and pipe manufacturing
- Metal fabrication workshops
Get a Fast Quotation
Please send us the following information:
- Material type
- Thickness range
- Coil width
- Coil weight
- Production capacity per day
- For slitting: strip width and quantity
- For cut-to-length: sheet length
We will provide technical proposal and quotation within 24 hours.
Description
Coil Processing Line
Uncoiling · Leveling · Cut-To-Length · Slitting
A modular solution for converting metal coils into flat sheets or narrow strips with stable accuracy and high efficiency.
1) Overview
Our Coil Processing Line is designed for steel service centers, fabrication workshops, and metal processing plants.
It supports multiple process combinations to meet different production goals: sheet preparation (CTL) and strip production (Slitting).
- Suitable materials: Carbon Steel, Stainless Steel, Aluminum, Galvanized Steel, PPGI (and more)
- Modular design: choose only the functions you need, upgrade later if required
- Automation options: Manual / PLC / CNC, Servo feeding (optional)
2) Available Configurations
A. Uncoiling + Leveling + Cut-To-Length (CTL Line)
Best for producing flat sheets in fixed lengths with high flatness and length accuracy.
B. Uncoiling + Slitting (Slitting Line)
Best for producing multiple narrow strips from wide coils with clean edges and stable width tolerance.
C. Full Combined Line (Integrated Solution)
A complete system combining CTL and Slitting processes based on your production plan and workshop layout.
3) Process Flow (Typical)

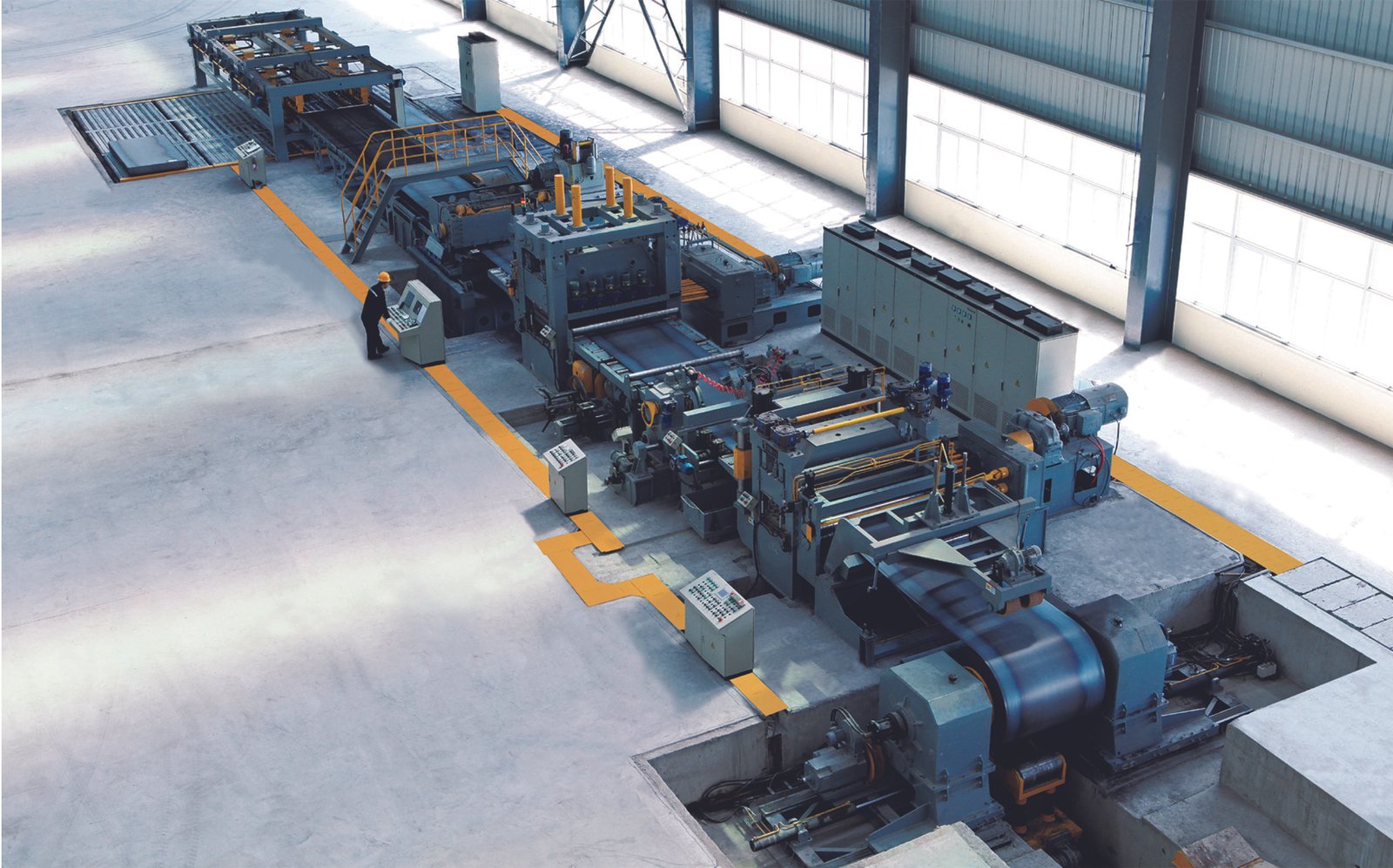

Cut-To-Length Line Flow

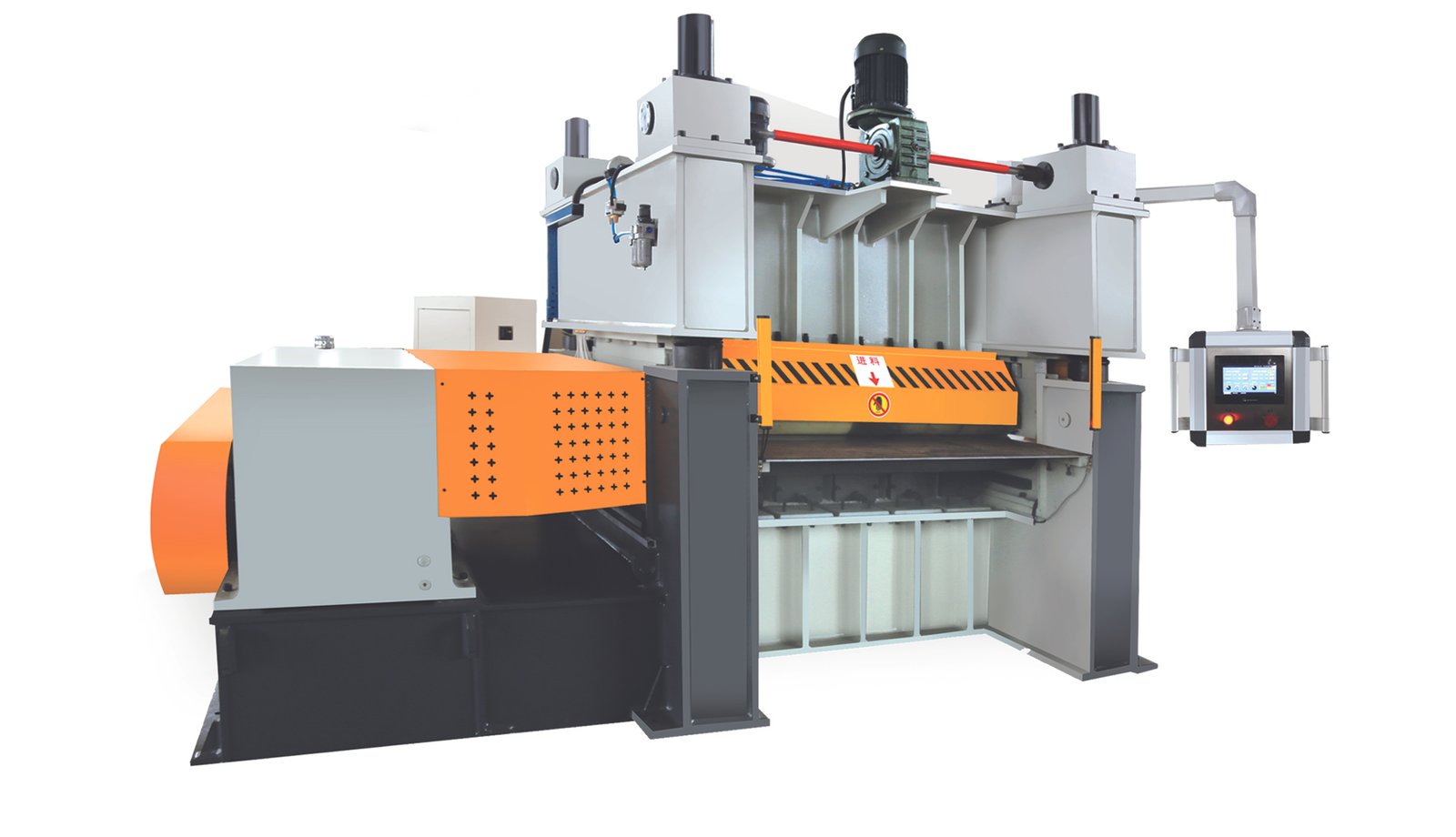

Coil Car → Hydraulic Decoiler (Uncoiler) → Pinch/Feeder → Precision Leveler → Measuring System → Shearing (Cut-to-Length) → Stacker

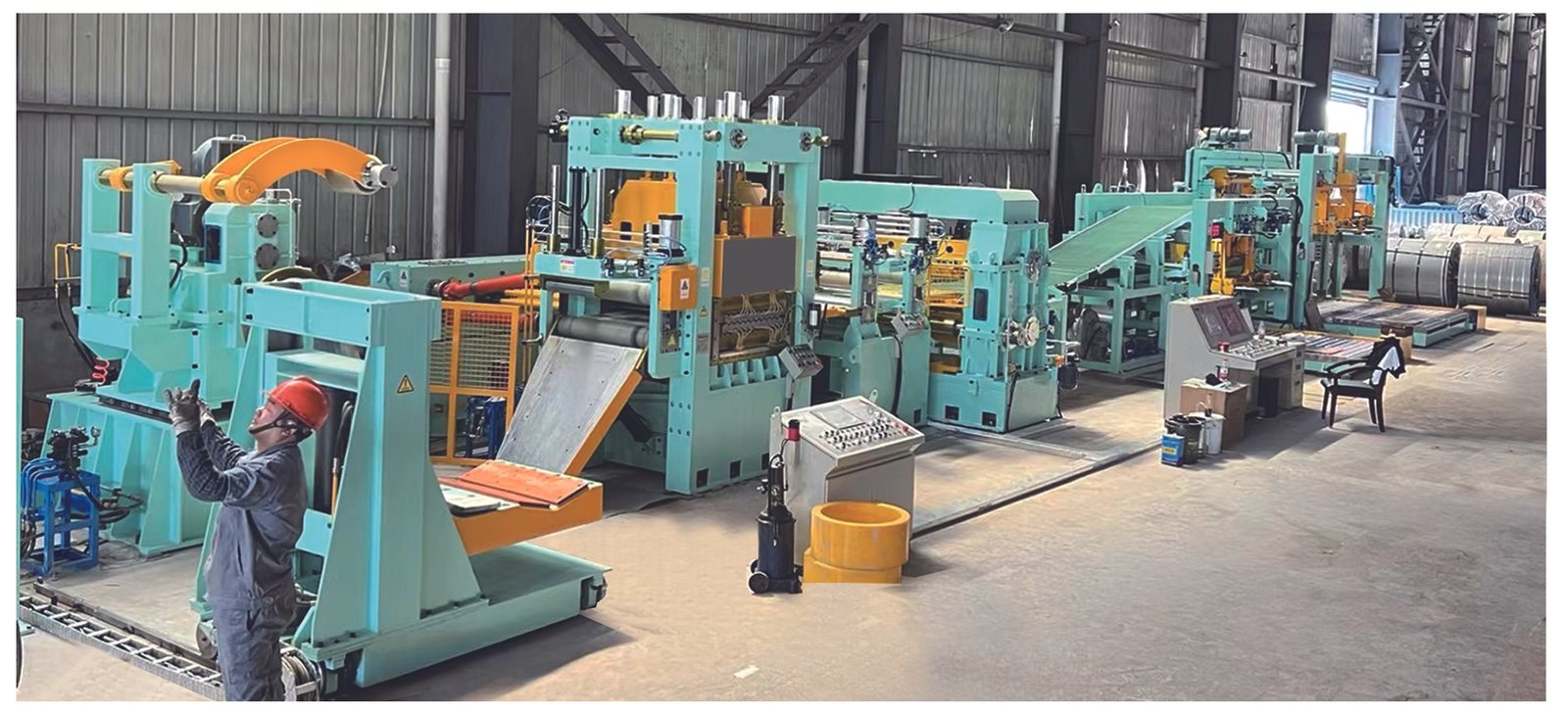

Slitting Line Flow
Coil Car → Hydraulic Decoiler (Uncoiler) → Pinch/Feeder → Slitter → Scrap Winder → Tension Unit → Recoiler
4) Key Advantages
- High flatness leveling: multi-roller precision leveling for stable sheet quality.
- Clean slitting edges: quality blades + spacer system for low burr and consistent strip width.
- Heavy-duty structure: rigid frame reduces vibration for long-term stable performance.
- High productivity: continuous operation improves output and reduces labor cost.
- Custom-built solution: thickness, width, coil weight, speed, and automation level can be tailored.
- Easy operation: user-friendly control system with quick parameter setting.
- Low maintenance: durable components and standardized parts for cost-effective service.
- Safety design: E-stop, guards, interlocks, and safety sensors (as required).
5) Typical Technical Range (Custom Available)
| Item | Range / Option |
|---|---|
| Coil Width | 600–2000 mm (customizable) |
| Thickness | 0.2–16 mm (customizable) |
| Coil Weight Capacity | 5–30 Tons (customizable) |
| Line Speed | 0–120 m/min (depending on material & setup) |
| Cut-To-Length Accuracy | Typical ±0.5 mm (depending on configuration) |
| Slitting Quantity | 3–20 strips (depends on coil width & strip width) |
| Control System | Manual / PLC / CNC, Servo feeding (optional) |
Note: Final specifications depend on material type, yield strength, thickness range, coil OD/ID, and target capacity.
6) Applications
- Steel service centers (coil-to-sheet / coil-to-strip processing)
- Construction materials & roofing sheet plants
- Electrical cabinets, panels, and enclosures
- Automotive parts and general metal fabrication
- Light pole / pipe / tank fabrication (as upstream coil preparation)
7) Service & Support
- Configuration matching & technical proposal based on your coil data
- Layout suggestion and line capacity planning
- Installation guidance and commissioning support (remote / on-site options)
- Spare parts supply and long-term service support
- Factory visit available — we can arrange pickup and workshop tour
8) Get a Fast Technical Proposal (Within 24 Hours)
To recommend the right line, please share the following:
- Material type (CS / SS / Al / GI / PPGI) and yield strength (if known)
- Thickness range (mm)
- Coil width (mm)
- Coil weight (tons) and coil ID/OD (if available)
- Target output (tons/day or tons/month)
- For CTL: sheet length range & required tolerance
- For Slitting: strip widths & quantity per coil
Contact us to receive: Technical layout + configuration list + quotation (FOB China) + delivery time.
