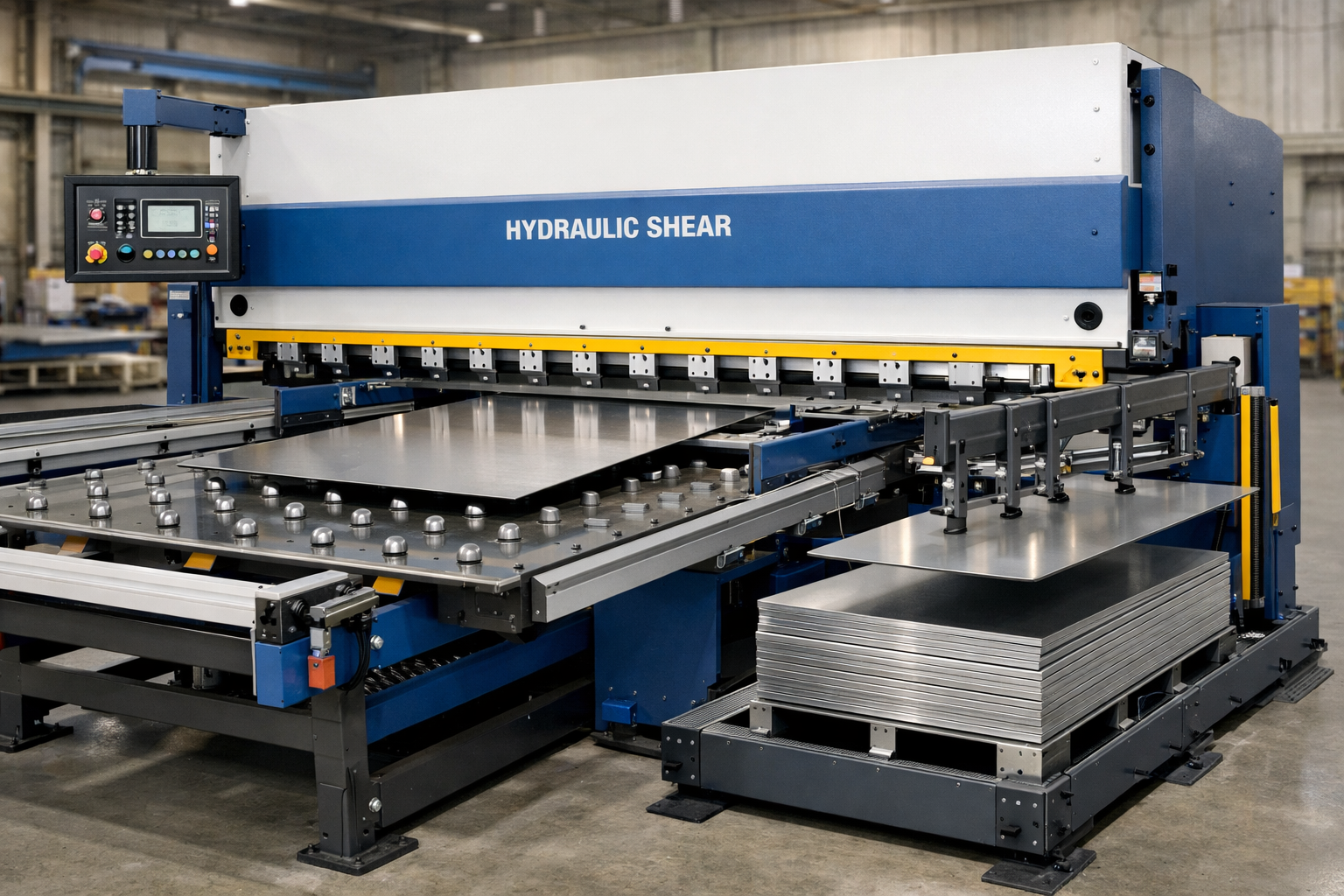

QC11K Series CNC Hydraulic Guillotine Shear
Second-generation mono-block frame, three-point guide and DAC-360 control for high-quality, distortion-free cuts.
π§ Performance Features
- β Full-steel welded frame, heat-treated for rigidity and stability
- β Integrated hydraulic system for high reliability
- β Three-point rolling-guide eliminates gap and improves cut quality
- β Blade clearance adjusted by hand-wheelβfast, accurate, convenient
- β Four-edge rectangular blades for long service life
- β Variable shear angle reduces plate distortion
- β Inclined upper beam eases blank dropping and improves accuracy
- β Section cutting and shadow-line lighting functions included
- β Motorised back-gauge with digital display
- β Ball-screw back-gauge drive for repeatable positioning
βοΈ Control & Optional Details
- β’ DAC-360S CNC: back-gauge, angle, stroke, gap and pressure control
- β’ Estun E21s digital display (economic version)
- β’ Front support arms (optional)
- β’ Rear sheet support (optional)
- β’ Sheet hold-down cylinder with adjustable pressure
Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

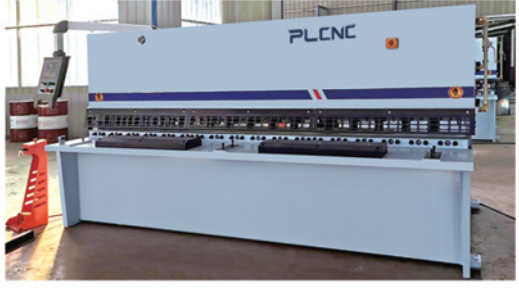

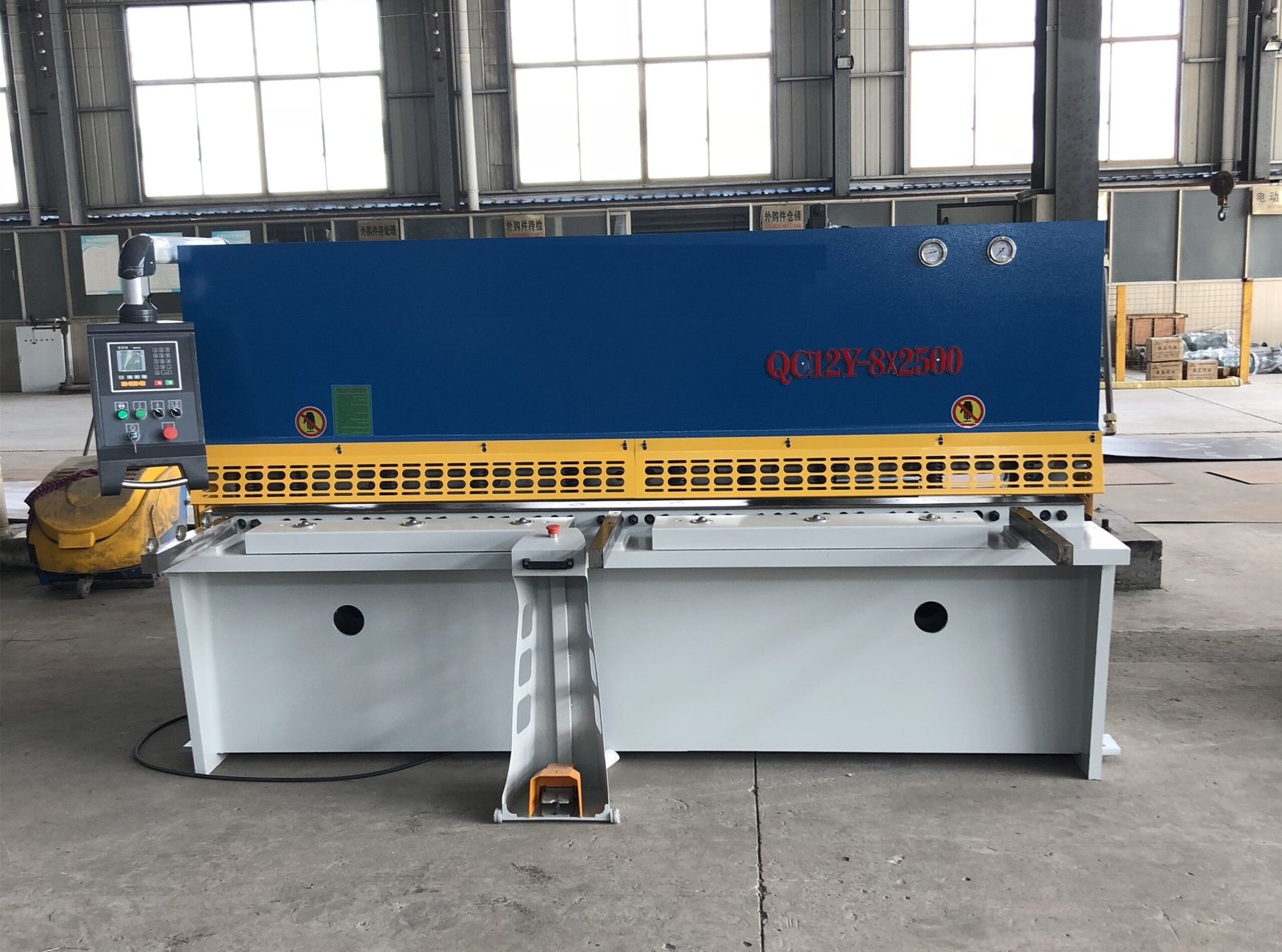

QC12K/Y Series CNC Hydraulic Swing-Beam Shear
Proven swing-beam frame paired with DELEM DAC-310 or Estun E21s control for accurate, low-cost cutting.
π§ Performance Features
- β Adopts QC12Y swing-beam structure for smooth, powerful cutting
- β DELEM DAC-310 dedicated shear CNC (Estun E21s available)
- β Imported AC servo motor for back-gauge drive
- β Imported ball-screw + linear-guide back-gauge for high repeatability
- β Blade clearance adjusted by hand-wheelβfast, accurate, convenient
- β Front support arms (optional) ease sheet loading
βοΈ Optional Configuration Details
- β’ DELEM DAC-360 or Cybelec CNC upgrade
- β’ Pneumatic sheet hold-down with pressure adjustment
- β’ Rear sheet support table (optional)
- β’ Shadow-line cutting indicator
- β’ Four-edge rectangular blades for longer life
Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.
