Rolling Machine

Description

About Sanhui Intelligent

Jiangsu Sanhui Intelligent is a professional sourcing integrator and technical services partner specializing in plate-rolling machines and sheet-metal processing equipment.

Over the years, we have established stable partnerships with multiple reliable plate-rolling machine manufacturers across China, covering 3-roller, 4-roller, hydraulic, CNC, heavy-duty, and customized solutions. Instead of representing only one factory, we integrate resources from several qualified manufacturers to ensure you receive the most suitable solution in terms of performance, budget, and delivery.

What we offer is not just equipment, but clarity and efficiency.

Your Flexible Sourcing Partner

Whether you prefer to purchase directly from factories or work through a single trusted partner, we adapt to your preferred procurement model:

Direct factory purchasing:
We can recommend suitable factories and act as your technical and sourcing advisor, helping you compare options and control risks.

Agent or integrated supply model:
If you prefer a smoother, more secure process, we can handle supplier coordination, technical confirmation, quality control, and export services as your procurement agent.

More Than a Supplier — A Communication Bridge

For many international buyers, the biggest challenge is not finding machines but ensuring accurate communication and reliable execution.
We serve as:

Technical translator between engineers and buyers

Sourcing consultant to avoid mismatched specifications

Export coordinator to ensure smooth delivery and documentation

This reduces misunderstanding, shortens decision time, and ensures the machine you receive truly matches your production needs.

Flexible, Practical, Buyer-Oriented

We understand that every project is different. Some clients need only a reliable factory connection, while others prefer a full-service partner.
Sanhui Intelligent offers flexible cooperation policies designed to make your purchasing process:

Clearer. Safer. More efficient.

Whether you choose to work with us directly or use us as your sourcing and technical support partner, our goal remains the same —
to help you select the right plate-rolling solution with confidence.

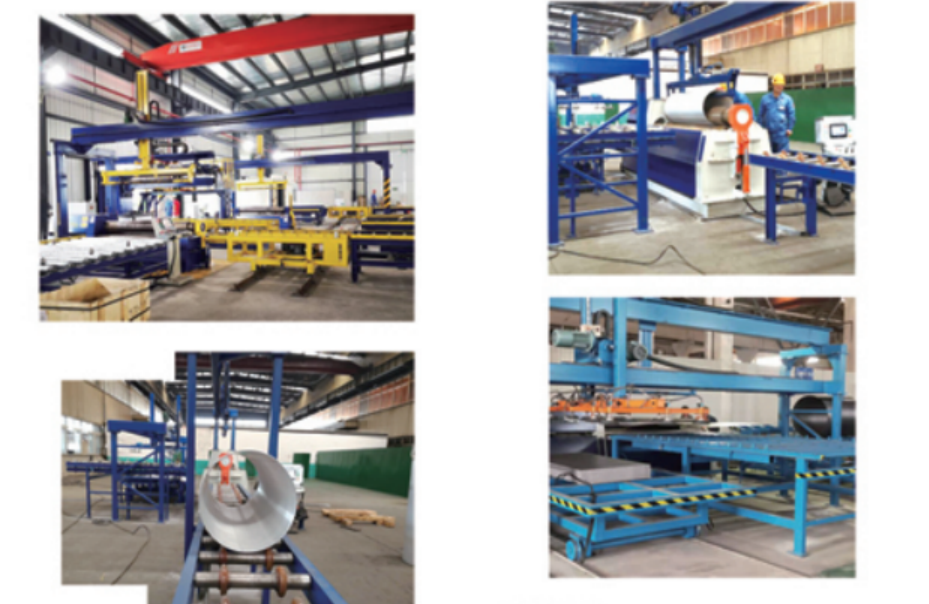

W12CNC 4-Rolls Plate Rolling Line

Fully automatic loading-feeding-rolling-unloading; EPS levelling, pneumatic ejection, 160-400 pcs/day for 2-50 mm × 3 000 mm plates.


W12CNC 4-Rolls Line

🔧 Line Features

  • Auto de-stacking with powerful vacuum suction cups and sheet separator—one sheet per cycle guaranteed
  • Guided suction frame keeps sheet square during lift and travel
  • One-button operation via German touch-panel; recipe storage for consistent roundness
  • EPS automatic levelling of four roll axes—both edges same diameter, no taper
  • Pneumatic tilt and ejection; cycle time < 45 s, daily output 160-400 cylinders
  • Minimal flat ends (≤ 1.5 × plate thickness), eliminates post straightening

⚙️ Process Flow & Options

  • 1 Auto de-stack → 2 centre → 3 feed → 4 pre-bite → 5 roll → 6 weld (opt.) → 7 eject
  • Integrated MIG/MAG welding station (optional)
  • Hydraulic pinch-roll upgrade for 50-80 mm thickness
  • Out-feed conveyor and automatic stacking
  • Remote diagnostics and Industry 4.0 data package

Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

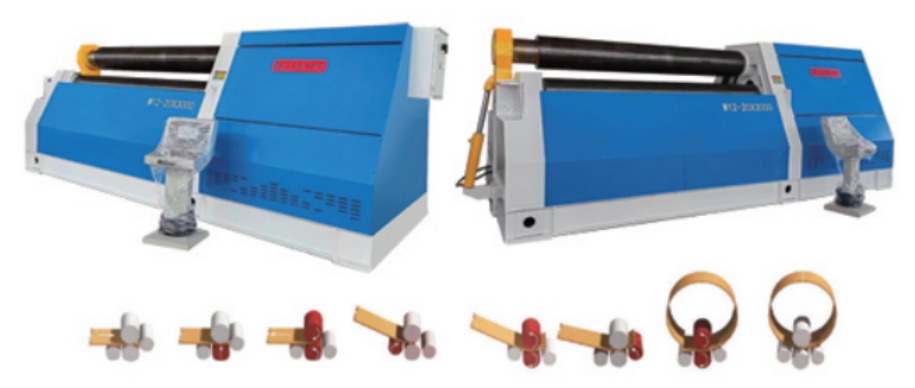

W12CNC Hydraulic 4-Rolls Plate Rolling Machine

Pre-bends both edges without turning plate; full CNC program, 60 % energy saving, 50-80 % higher throughput than 3-roll machines.


W12CNC 4-Rolls Plate Roller

🔧 Machine Highlights

  • One-pass pre-bending & rolling—no plate reversal needed
  • Top roll driven; bottom & side rolls hydraulically raised with CNC auto-levelling & screen display
  • Hydraulic drop-end with balance device for fast shell removal
  • Movable independent control console with safety interlocks
  • Full-hydraulic drive: 60 % lower power than traditional machines
  • Permanent-lubrication bearings (maintenance-free life-time)
  • Controllable clamping force eliminates slip, boosts productivity 50-80 %
  • Rolls diameters down to 1.1 × top-roll Ø possible

⚙️ Optional Special Devices

  • Top support device for thin/long shells
  • Side support arms (height adjustable)
  • Cone-rolling attachment
  • Feed-in/out roller tables powered or idle
  • Roll surface grinding / chrome plating / stainless-steel cladding
  • Automatic welding station interface

Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

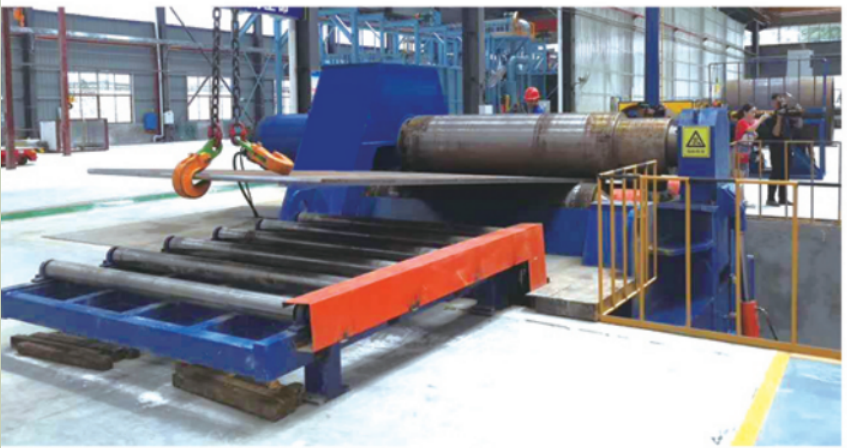

W12CNC Heavy-Duty 4-Rolls Plate Rolling Line

Automatic feeding, rolling & unloading for 2-60 mm × 3 000 mm plates; EPS levelling, 1 120 mm top roll, 50 t capacity.


W12CNC Heavy 4-Rolls Plate Roller

🔧 Line Features

  • One-pass pre-bending & rolling—no plate reversal needed
  • EPS automatic levelling of four roll axes—both edges same diameter, no taper
  • Pneumatic tilt and ejection; cycle time < 45 s, daily output 160-400 shells
  • Minimal flat ends (≤ 1.5 × plate thickness), eliminates post straightening
  • Full-hydraulic drive: 60 % lower power than traditional machines
  • Permanent-lubrication bearings (maintenance-free life-time)

⚙️ Technical Specifications (Automatic Line)

Model Plate Thickness
(mm)
Plate Width
(mm)
Top Roll Ø
(mm)
Motor Power
(kW)
Dimensions
(L×W×H mm)
W12CNC-4×1500 1-4 1 500 150 5.5 3 100 × 800 × 1 000
W12CNC-4×2000 1-4 2 000 170 5.5 3 600 × 900 × 1 000
W12CNC-6×2000 1-6 2 000 190 7.5 3 900 × 1 100 × 1 300
W12CNC-6×2500 1-6 2 500 220 11 4 500 × 1 200 × 1 400
W12CNC-8×2500 2-8 2 500 250 15 4 700 × 1 500 × 1 500
W12CNC-12×2000 4-12 2 000 312 22 4 800 × 1 600 × 1 600
W12CNC-16×4000 4-16 4 000 400 30 5 800 × 1 800 × 1 800
W12CNC-60×3000 10-60 3 000 1 120 2 × 55 12 000 × 3 500 × 3 200

Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

W11X Three-Roll Horizontal Down-Adjusting Plate Rolling Machine

Pre-bends without plate turnover; three fully-driven rolls, hydraulic horizontal shift of lower rolls, 1-200 mm × 8 000 mm capacity.


W11X Horizontal Down-Adjusting Plate Roller

🔧 Performance Features

  • Pre-bends both edges in one pass—no plate reversal required
  • All three rolls are main-driven (no slip) with spherical roller bearings for high torque
  • Upper-roll vertical and lower-rolls horizontal movement via hydraulics
  • CNC auto-levelling, screen display, 0.2 mm synchronisation accuracy
  • Adjustable centre distance—ideal for both thin and thick plates
  • Low centre-of-gravity frame for stability; can straighten as well as roll
  • Covers 1-200 mm thickness, width up to 8 000 mm on request

⚙️ Technical Parameters (Popular Models)

Model Max Plate Thickness (mm) Max Width (mm) Min Dia. (mm) Yield Limit (MPa) Top Roll Ø (mm) Motor Power (kW)
W11X-12×2500 12 2 500 10 245 320 15
W11X-20×2500 20 2 500 4.5 16 245 37
W11X-32×2500 32 2 500 4 28 245 30
W11X-40×3000 40 3 000 3.5 35 245 55
W11X-65×4000 65 4 000 3.2 60 245 90
W11X-90×3000 90 3 000 3 75 245 110
W11X-120×3000 120 3 000 3 100 245 132
W11X-160×4000 160 4 000 3 130 245 220

Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

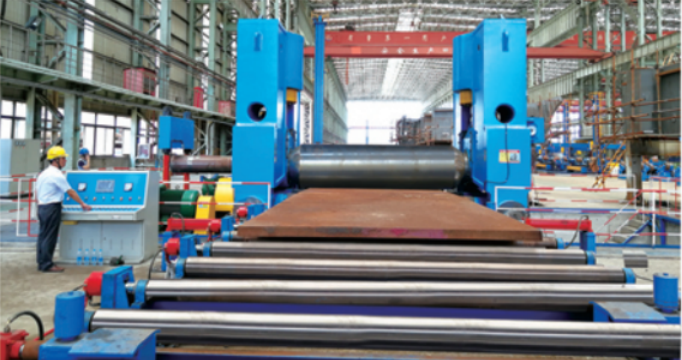

W11S CNC Upper-Roll Universal Plate Rolling Machine

Hydraulic 3-roll universal type; upper roll moves vertical & horizontal for one-pass pre-bending; 1-180 mm × 4 000 mm capacity.


W11S Universal Plate Roller

🔧 Machine Highlights

  • One-pass pre-bending & rolling—no plate reversal needed
  • Upper roll: hydraulic vertical + mechanical horizontal shift for asymmetric pre-bend
  • Both lower rolls driven via gearbox; roll elevation unchanged → easy feed & operation
  • Hydraulic drop-end for fast shell removal; PLC touch-screen, digital display
  • Rolls cylindrical, arc, cone & U-shape; widely used in pipeline, boiler, shipbuilding, petrol-chemical industries

⚙️ Technical Parameters (Popular Models)

Model Plate Thickness (mm) Plate Width (mm) Top Roll Ø (mm) Main Motor (kW) Overall Size (L×W×H mm)
W11S-6×1500 1-6 1 500 160 5.5 3 200 × 1 050 × 1 250
W11S-12×2000 1-12 2 000 250 7.5 3 900 × 1 450 × 1 400
W11S-20×2500 3-20 2 500 340 15 5 000 × 1 700 × 1 900
W11S-30×2500 5-30 2 500 420 30 5 200 × 2 400 × 2 500
W11S-40×3200 6-40 3 200 550 45 7 800 × 2 900 × 3 200
W11S-60×3200 10-60 3 200 660 75 6 700 × 3 500 × 3 900
W11S-80×3200 16-80 3 200 780 90 7 200 × 4 000 × 4 700
W11S-100×3200 20-100 3 200 860 110 7 500 × 4 200 × 4 900
W11S-120×4000 30-120 4 000 980 2×75 8 600 × 4 600 × 6 300
W11S-160×3500 40-160 3 500 1 200 2×90 8 500 × 5 760 × 7 100
W11S-180×3200 50-180 3 200 1 280 2×110 8 000 × 6 700 × 7 600

Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

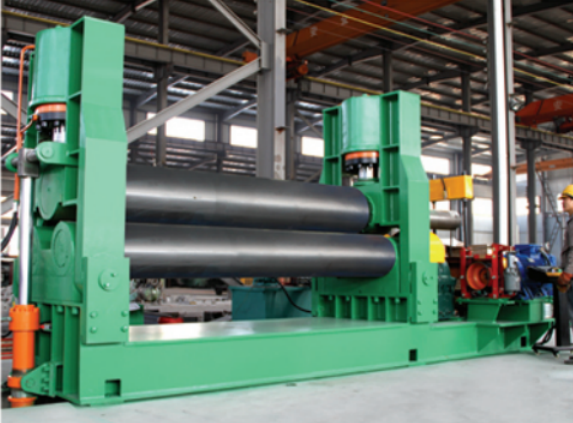

W11Y 3-Rolls Hydraulic Symmetrical Plate Rolling Machine

Classic symmetrical design: upper roll lifts hydraulically, lower rolls rotate via gearbox; 30-120 mm × 3 000 mm range, low-cost & robust.


W11Y Symmetrical 3-Rolls Plate Roller

🔧 Machine Highlights

  • Symmetrical 3-roll structure: upper roll moves vertically through hydraulic cylinders; lower rolls driven by gearbox & gear mesh
  • Simple, rugged frame for low maintenance and long life
  • Lower-roll elevation unchanged → easy sheet insertion and operation
  • Hydraulic drop-end for fast shell removal
  • Optional cone-rolling device, top/side supports, powered feed tables, roll surface grinding/chrome/cladding

⚙️ Technical Parameters (Popular Models)

Model Max Thickness (mm) Width (mm) Yield Limit (MPa) Min Dia. (mm) Top Roll Ø (mm) Motor (kW)
W11Y-25×2500 25 2 500 245 1 200 370 22
W11Y-30×2500 30 2 500 245 1 200 420 30
W11Y-40×3000 40 3 000 245 1 600 540 45
W11Y-50×3000 50 3 000 245 2 000 580 55
W11Y-60×3000 60 3 000 245 2 400 680 75
W11Y-80×3000 80 3 000 245 3 200 770 90
W11Y-100×3000 100 3 000 245 4 000 860 110
W11Y-120×3000 120 3 000 245 4 800 960 132

Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

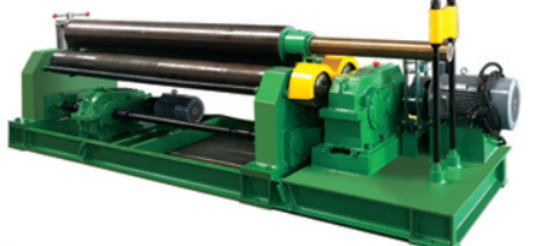

W11 3-Rolls Mechanical Symmetrical Plate Rolling Machine

Classic mechanical design: motorised upper-roll lift, gear-driven lower rolls, low investment & easy maintenance; 1-50 mm × 4 000 mm range.


W11 Mechanical 3-Rolls Plate Roller

🔧 Machine Highlights

  • Symmetrical 3-roll layout: motor raises upper roll via screw-nut pair; lower rolls rotate through main gearbox & gear train
  • Frame fully annealed to relieve stress; never deforms
  • Lower-roll elevation unchanged → easy sheet feeding & operation
  • Digital display of upper-roll position (LCD console); alloy-steel nuts for long life
  • Durable, simple, low-cost; widely adapted to various workshops
  • Optional cone device, top/side supports, powered feed tables, roll surface grinding/chrome/cladding

⚙️ Technical Parameters (Popular Models)

Model Thickness (mm) Width (mm) Yield Limit (MPa) Min Dia. (mm) Top Roll Ø (mm) Motor (kW) Dimensions (L×W×H mm)
W11-4×1500 1-4 1 500 245 280 140 4 2 800 × 800 × 1 100
W11-6×2000 1-6 2 000 245 380 170 4 3 000 × 900 × 1 350
W11-8×2500 2-8 2 500 245 480 220 7.5 4 200 × 1 100 × 1 350
W11-12×2000 3-12 2 000 245 500 240 7.5 3 800 × 1 100 × 1 400
W11-16×2500 3-16 2 500 245 600 280 11 4 800 × 1 400 × 1 450
W11-20×2500 3-20 2 500 245 750 340 15 5 000 × 1 500 × 1 550
W11-25×2500 3-25 2 500 245 900 380 22 5 100 × 1 700 × 1 650
W11-30×2500 5-30 2 500 245 1 000 420 30 5 800 × 1 900 × 1 900
W11-40×2500 6-40 2 500 245 1 200 520 37 6 000 × 2 100 × 2 200
W11-50×2500 8-50 2 500 245 1 400 610 45 6 500 × 2 300 × 2 500

Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

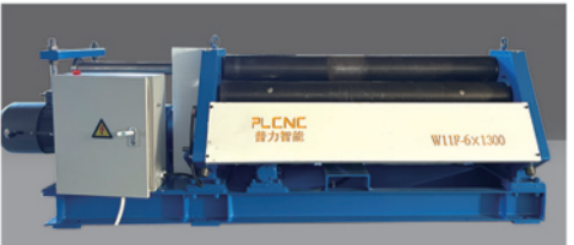

W11F 3-Rolls Mechanical Asymmetrical Plate Rolling Machine

Pre-bends leading edge without plate turnover; upper & lower rolls power-driven; side roll升降 via worm gearbox; 2-6 mm × 2 000 mm range, economic & compact.


W11F Asymmetrical 3-Rolls Plate Roller

🔧 Machine Highlights

  • Asymmetrical 3-roll layout: upper & lower rolls are main-driven; side roll升降 via mechanical worm gearbox → eliminates slip, ensures grip
  • Pre-bends leading edge in one pass—no plate reversal needed
  • Manual drop-end with balance weight for easy shell removal
  • Compact, economic, low maintenance; ideal for thin-plate workshops
  • Optional cone device, top/side supports, feed tables, roll grinding/chrome/cladding

⚙️ Technical Parameters

Model Thickness (mm) Width (mm) Yield Limit (MPa) Min Dia. (mm) Top Roll Ø (mm) Bottom Roll Ø (mm) Side Roll Ø (mm) Motor (kW)
W11F-2×1000 2 1 000 245 6 250 120 120 2.2
W11F-2×1600 2 1 600 245 8.1 250 130 130 2.2
W11F-4×1200 4 1 200 245 5.4 300 140 140 3
W11F-4×2000 4 2 000 245 5.4 350 150 150 3
W11F-6×1500 6 1 500 245 5.4 400 150 150 4
W11F-6×2000 6 2 000 245 5.4 400 160 160 4

Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

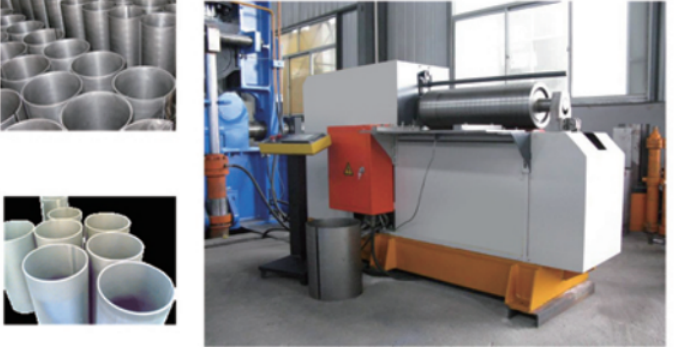

W10 2-Rolls Mechanical Plate Rolling Machine

One-pass forming, no straight-edge; steel roll + elastic rubber roll; PLC control; ideal for thin-wall pipes, air ducts, water-heater & filter shells.


W10 2-Rolls Mechanical Plate Roller

🔧 Machine Highlights

  • One-roll steel, one-roll rubber (elastic layer) – forming by contact-press-deform principle
  • Single pass completes cylinder with no obvious straight edge; high geometric accuracy & surface quality
  • Simple structure, fewer rolls, low investment & footprint
  • PLC programmable control – digital setting, easy integration into automatic lines
  • Widely used in automobile, HVAC, solar, aerospace, water-heater and filter industries for high-speed thin-wall pipe production

⚙️ Technical Parameters (Popular Models)

Model Thickness (mm) Width (mm) Yield Limit (MPa) Min Dia. (mm) Rubber Roll Ø (mm) Steel Roll Ø (mm) Motor (kW)
W10-2×1000 0.5-2 1 000 245 120 250 120 2.2
W10-2×1500 0.5-2 1 500 245 180 300 140 3
W10-3×1300 0.8-3 1 300 245 150 320 150 4
W10-4×1200 1-4 1 200 245 160 350 160 5.5
W10-4×1500 1-4 1 500 245 200 380 180 5.5
W10-5×1000 1.2-5 1 000 245 180 400 180 7.5

Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

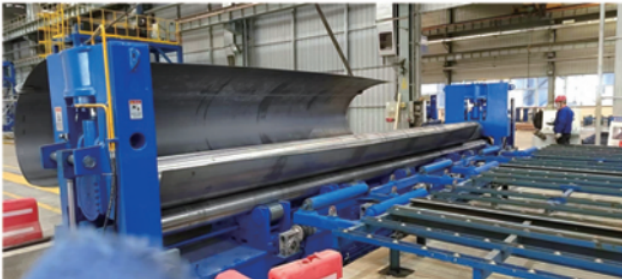

W11Y Special Plate Rolling Machine for Trailer Tank

Upper roll lifts & shifts hydraulically; lower roll driven; adjustable support rollers; arch upper roll for high straightness—ideal for 8-20 mm × 6-12 m trailer shells.


W11Y Trailer Tank Plate Roller

🔧 Performance Features

  • Upper roll: hydraulic vertical lift + worm/worm-wheel + screw/nut horizontal shift for asymmetric pre-bending
  • Lower roll driven only, providing rolling torque; elevation unchanged → easy feeding
  • Arch-shape upper roll + adjustable support rollers beneath lower roll → high shell straightness
  • Suitable for all trailer curved tank sections; lengths 6-12 m, thickness 8-20 mm Q345
  • Optional top/side supports, cone device, powered feed tables, roll grinding/chrome/stainless cladding

⚙️ Technical Parameters (Trailer Series)

Model Max Thickness (mm) Plate Width (mm) Yield Limit (MPa) Top Roll Ø (mm) Motor (kW) Overall Size (L×W×H mm)
W11Y-8×6000 8 6 000 345 420 15 9 500 × 1 800 × 2 300
W11Y-8×8000 8 8 000 345 470 15 11 600 × 2 100 × 2 900
W11Y-12×8000 12 8 000 345 510 22 11 600 × 2 300 × 2 900
W11Y-12×9500 12 9 500 345 540 30 13 600 × 2 300 × 2 500
W11Y-16×12000 16 12 000 345 600 45 17 200 × 2 500 × 3 500
W11Y-20×8000 20 8 000 345 550 37 9 600 × 2 500 × 2 700

Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

W11Y Ship-Building Special Plate Rolling Machine

Symmetric / asymmetric 3-roll designs for ship hull, arc & slot bulkhead plates; rigid girder upper roll, multiple support rollers; 20-40 mm × 8-21 m capacity.

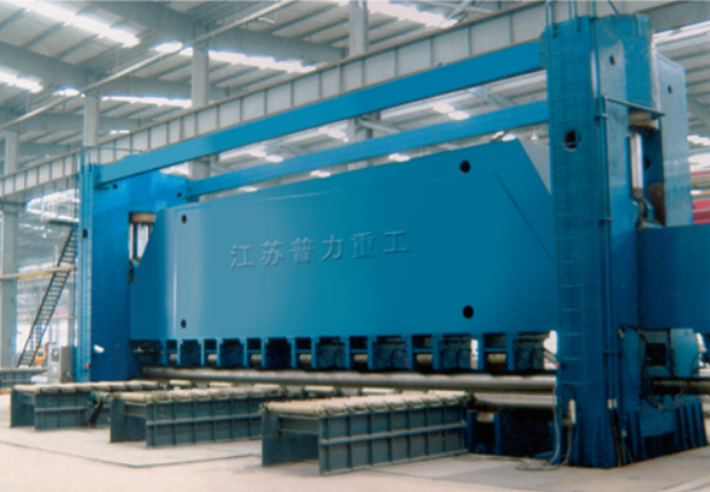

W11Y Ship Plate Roller

🔧 Machine Highlights

  • Four configurable styles: a) symmetric up-adjust, b) down-roll整体horizontal shift, c) down-roll分别horizontal shift, d) upper-roll universal
  • Rigid girder on upper roll; multiple sets of back-up rollers between lower & support rolls → eliminates deflection on long, thick plates
  • Designed for ship hull plates, arc plates and slot-type bulkheads; meets ship-class accuracy requirements
  • Customised roll diameters, centre distances and drive power for 8-21 m width, 20-40 mm thickness
  • Optional top/side supports, cone device, feed tables, roll grinding/chrome/stainless cladding

⚙️ Technical Parameters (Ship-Building Series)

Model Max Plate Thickness (mm) Plate Width (mm) Yield Limit (MPa) Top Roll Ø (mm) Main Motor (kW) Approx. Weight (t)
W11Y-20×8000 20 8 000 315 600 45 120
W11Y-25×12000 25 12 000 315 700 55 180
W11Y-30×12000 30 12 000 315 750 75 220
W11Y-30×16000 30 16 000 315 820 110 320
W11Y-40×18000 40 18 000 315 900 2×75 420
W11Y-40×21000 40 21 000 315 980 2×90 520

Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

W24S Hydraulic Section / Profile Bending Machine

Hardened rolls with double-taper bearings; horizontal & vertical work positions; 6-500 cm³ section modulus; angle, channel, beam, flat, tube & T-bend capability.

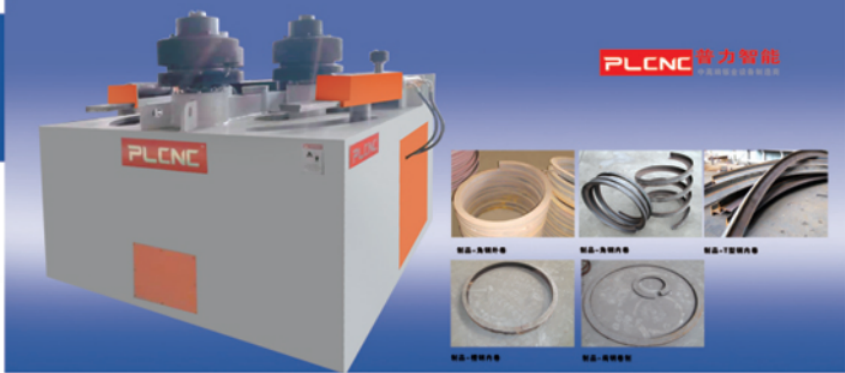

W24S Section Bender

🔧 Machine Highlights

  • Rolls machined from high-grade steel, induction-hardened
  • Drive shafts pre-treated and mounted in double-taper roller bearings for high rigidity
  • Machine can be set in horizontal or vertical working position for different profiles
  • Standard 3-roll pyramid with side support rollers; optional 4-roll version for tight radii
  • Hydraulic roll positioning with digital read-out; foot-pedal cycle control
  • One set of standard tooling supplied; special rolls for thin-wall tube, I-beam etc. available

⚙️ Technical Parameters (Popular Models)

Model Section Modulus (cm³) Bending Speed (rpm) Yield Limit (MPa) Flat Steel (mm) Angle Steel (mm) Round Tube (mm) Square Tube (mm) Motor (kW)
W24-6 6 6 250 40×5 50×5 38 45×3 3
W24-16 16 5 250 70×8 80×8 76×4.5 75×10 4
W24-45 45 5 250 90×10 100×10 89×8 90×8 7.5
W24-75 75 5 250 100×10 120×12 114×5 100×10 11
W24-140 140 4 250 140×16 150×16 168×8 150×10 22
W24-260 260 4 250 160×16 180×14 219×8 165×10 37
W24-400 400 4 250 200×18 200×24 273×8 200×12 55
W24-500 500 4 250 200×20 250×25 323×10 200×18 75

Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

case studies
Industry Solutions
Technical Support
