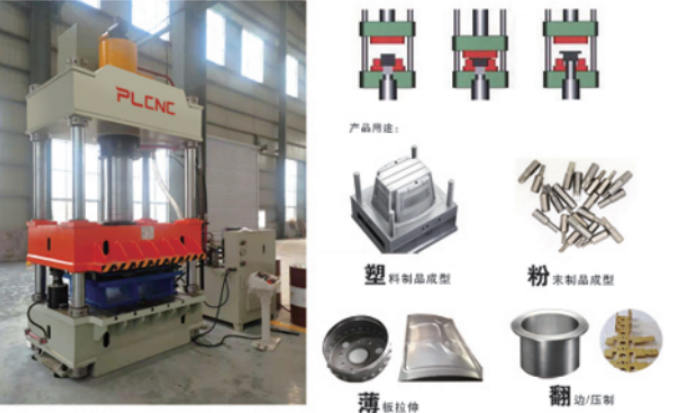

YPL32 Four-Column Universal Hydraulic Press
Computer-optimised 3-beam 4-column structure, cartridge-valve hydraulics, low shock; choice of stroke/pressure forming modes; 200-2 000 kN range for sheet-metal drawing, blanking, bending, powder & plastic moulding.
🔧 Performance Features
- ✓ 3-beam 4-column frame, FEM optimised—high rigidity, simple, economic
- ✓ Cartridge-valve integrated hydraulic system—reliable, long life, low shock, fewer pipe joints
- ✓ Independent electrical cabinet—PLC + push-button console; jog, single-cycle & semi-auto modes
- ✓ Choice of fixed-stroke or fixed-pressure forming with dwell timer; pressure & speed adjustable over full range
- ✓ Suitable for metal sheet drawing, bending, flanging, cold extrusion, blanking; also for powder, plastic & insulation moulding
⚙️ Technical Parameters (Popular Models)
| Model | Nominal Force (kN) | KO Force (kN) | Liquid Max Press (MPa) | Slide Stroke (mm) | KO Stroke (mm) | Daylight (mm) | Table Size (mm) | Motor (kW) |
|---|---|---|---|---|---|---|---|---|
| YPL32-200 | 2 000 | 200 | 25 | 50 | 1000 | 1250 | 580 × 2000 | 11 |
| YPL32-315 | 3 150 | 630 | 25 | 60 | 1200 | 1500 | 700 × 2200 | 15 |
| YPL32-500 | 5 000 | 1 000 | 25 | 80 | 1500 | 1800 | 900 × 2500 | 22 |
| YPL32-800 | 8 000 | 1 600 | 25 | 100 | 1800 | 2200 | 1200 × 3000 | 37 |
| YPL32-1000 | 10 000 | 2 000 | 25 | 120 | 2000 | 2500 | 1400 × 3200 | 45 |
Optional Accessories
- • Moving bolster / T-slot table
- • Knock-out (ejector) device
- • Photoelectric safety curtain
- • PLC programmable controller + touch-screen HMI
- • Hydraulic cooling / heating unit
- • Stroke & pressure digital display / CNC closed-loop control
Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

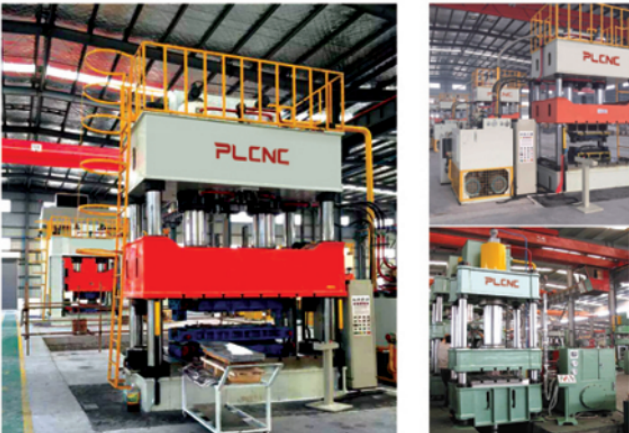

YPL27 Four-Column Single-Action Sheet-Stretching Hydraulic Press
Computer-optimised 4-column frame, cartridge-valve hydraulics, variable speed & pressure; choice of fixed-stroke or fixed-pressure forming; 630-2 000 kN range for deep drawing, blanking, bending of thin sheet.
🔧 Performance Features
- ✓ Computer-optimised 4-column structure – simple, economic, high rigidity
- ✓ Cartridge-valve integrated hydraulic system – reliable, long life, low shock, fewer leaks
- ✓ Separate electrical cabinet – PLC + push-button console; jog, semi-auto modes (fixed-stroke single or fixed-pressure single)
- ✓ Working pressure, fast-down speed and slow pressing stroke adjustable on demand
- ✓ Ideal for thin-sheet deep drawing, blanking, punching, bending; also for correcting, powder & plastic moulding
⚙️ Technical Parameters (Popular Models)
| Model | Nominal Force (kN) | Liquid Max Press (MPa) | Slide Stroke (mm) | Cushion Stroke (mm) | Daylight (mm) | Table Size (mm) | Cushion Size (mm) | Motor (kW) |
|---|---|---|---|---|---|---|---|---|
| YPL27-630 | 630 | 25 | 500 | 200 | 800 | 580 × 500 | 380 × 380 | 7.5 |
| YPL27-1000 | 1 000 | 25 | 600 | 250 | 1 000 | 720 × 580 | 500 × 420 | 11 |
| YPL27-1600 | 1 600 | 25 | 700 | 300 | 1 200 | 900 × 720 | 660 × 540 | 15 |
| YPL27-2000 | 2 000 | 25 | 800 | 300 | 1 400 | 1 100 × 900 | 760 × 620 | 22 |
Optional Accessories
- • Moving work-table / T-slot bolster
- • Knock-out (ejector) device
- • Photoelectric safety curtain
- • PLC programmable controller + touch-screen HMI
- • Hydraulic cooling / heating unit
- • Stroke & pressure digital display / CNC closed-loop control
Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

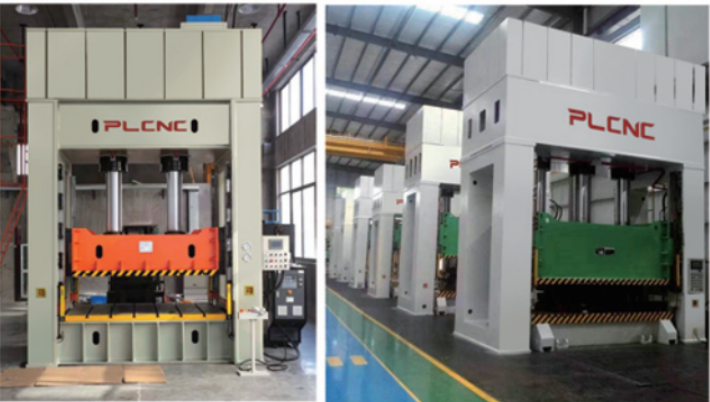

YPL27 Frame-Type Single-Action Sheet-Stretching Hydraulic Press
Fully-welded steel frame, stress-relieved; 8-face guiding for high precision & off-centre resistance; cartridge-valve circuit; 630-5 000 kN range for deep drawing / forming of large thin sheet parts.
🔧 Performance Features
- ✓ Computer-optimised full-steel welded frame, high-temperature tempering—high rigidity & long-term accuracy
- ✓ Cartridge-valve integrated system—large flow, low internal leakage, long life, minimal pipe joints
- ✓ Four-corner eight-face guide rails—high guiding accuracy, strong anti-offset capability, centralised lubrication
- ✓ Button-centralised control: jog + semi-auto (fixed-stroke single or fixed-pressure single) modes
- ✓ Optional cushion (blank-holder) force & stroke adjustable; ideal for large thin-sheet deep drawing & forming
⚙️ Technical Parameters (Popular Models)
| Model | Nominal Force (kN) | Cushion Force (kN) | Slide Stroke (mm) | Cushion Stroke (mm) | Daylight (mm) | Table Size (mm) | Motor (kW) |
|---|---|---|---|---|---|---|---|
| YPL27-630 | 630 | 250 | 500 | 200 | 900 | 1 200 × 1 000 | 15 |
| YPL27-1000 | 1 000 | 400 | 600 | 250 | 1 100 | 1 400 × 1 200 | 22 |
| YPL27-1600 | 1 600 | 630 | 700 | 300 | 1 300 | 1 600 × 1 400 | 30 |
| YPL27-2000 | 2 000 | 800 | 800 | 350 | 1 500 | 1 800 × 1 600 | 37 |
| YPL27-3150 | 3 150 | 1 250 | 900 | 400 | 1 700 | 2 000 × 1 800 | 55 |
| YPL27-5000 | 5 000 | 2 000 | 1 000 | 450 | 1 900 | 2 200 × 2 000 | 75 |
Optional Accessories
- • Mobile work-table / quick die-change trolley
- • Cushion (blank-holder) device with proportional force control
- • Displacement sensor for closed-loop position control
- • Photoelectric safety curtain
- • Touch-screen industrial display
- • Hydraulic cooling / heating unit
Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

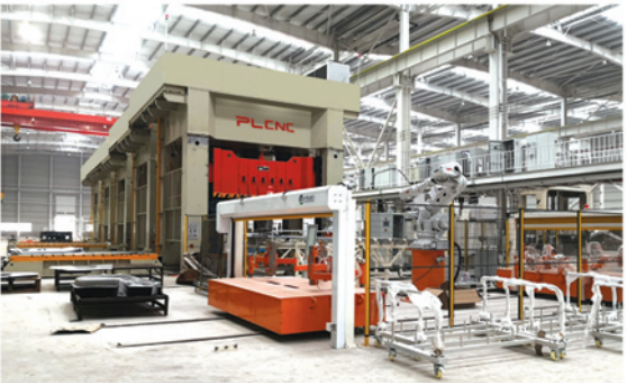

YPL Hydraulic Press Automatic Production Line
Robot tending + automatic destack / wash / oil / centre / transfer / out-feed; cycle 3-6 strokes/min; cuts labour, boosts quality & factory image.
🔧 System Highlights
- ✓ Complete turnkey: destack → belt feeder → washer → oiler → centre → 6-axis robot → press transfer → out-feed belt
- ✓ Cycle rate 3-6 SPM achievable depending on part size & press speed
- ✓ Multi-joint robot – flexible path, low inertia, high positioning accuracy; passes obstacles between press & fixtures
- ✓ Quick die-change trolley, die clamping & positioning system reduce change-over to < 5 min
- ✓ Compatible with any brand press; interfaces via Profibus / Profinet / EtherCAT
- ✓ Real-time production data, OEE report, remote diagnostics via Industrial PC & cloud gateway
⚙️ Key Factors Affecting Cycle Speed
| Factor | Influence on Cycle |
|---|---|
| Die & part geometry | Complex draws need slower forming & longer dwell |
| Part size / weight | Large panels require dual-gripper or tandem robots |
| Press speed & stroke | High-speed servo presses can reach 8-12 SPM |
| Press control system | Must provide robot enable, top-stop, quick exhaust |
| Transfer pitch | Min. 0.8 s pick-up + 0.8 s place achievable with 6-axis |
Typical Line Configuration
- 1 De-stacker with magnetic / vacuum split & double-sheet detection
- 2 Brushing & washing station (optional ionised air blow-off)
- 3 Roller oiler with recycle & film thickness control
- 4 Centre-alignment belt with servo side guides
- 5 6-axis robot (10-50 kg payload, ±0.05 mm repeatability)
- 6 Gripper changer magazine for multi-part families
- 7 Out-feed belt + vision inspection + good/reject sorting
Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

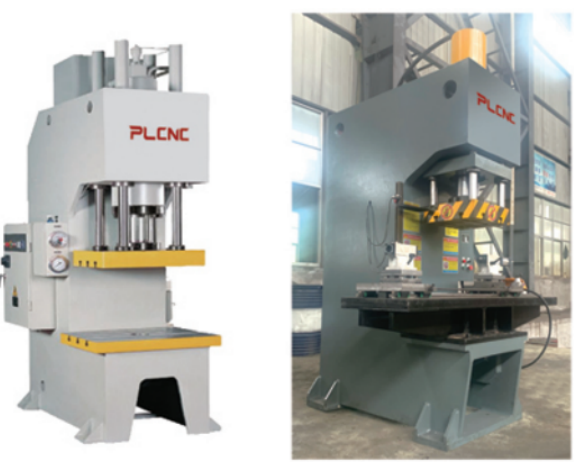

YPL30/41 Series Single-Column (C-Frame) Hydraulic Press
Rigid welded C-frame, temper-stress relieved; cartridge-valve hydraulics with pressure pre-relief; 3-operation modes; 25-500 kN range for shaft correction, bush pressing, shallow drawing & powder/plastic moulding.
🔧 Performance Features
- ✓ Computer-optimised C-type single-arm frame—good rigidity, simple, small footprint
- ✓ Welded steel plate, furnace tempering to relieve stress
- ✓ Two-way cartridge-valve integrated circuit—reliable, low shock, fewer leaks
- ✓ Hydraulic system with pressure pre-relief device—smooth reversal, low noise
- ✓ Independent electrical cabinet—PLC + button panel; jog, manual, semi-auto (fixed-stroke or fixed-pressure single) modes
- ✓ Slide pressure, fast-down & slow-pressing speeds adjustable on demand
- ✓ Ideal for shaft/bush correction & pressing, shallow drawing, bending, stamping, powder & plastic compacting
⚙️ Technical Parameters (Popular Models)
| Model | Nominal Force (kN) | Liquid Max Press (MPa) | Slide Stroke (mm) | Open Height (mm) | Table Size (mm) | Table Height (mm) | Motor (kW) |
|---|---|---|---|---|---|---|---|
| YPL30-25 | 250 | 16 | 220 | 500 | 400 × 400 | 700 | 2.2 |
| YPL30-63 | 630 | 20 | 350 | 600 | 500 × 500 | 700 | 4 |
| YPL41-100 | 1 000 | 22 | 400 | 700 | 600 × 600 | 750 | 5.5 |
| YPL41-160 | 1 600 | 25 | 450 | 800 | 700 × 700 | 750 | 7.5 |
| YPL41-250 | 2 500 | 25 | 500 | 900 | 800 × 800 | 800 | 11 |
| YPL41-500 | 5 000 | 25 | 600 | 1 000 | 1 000 × 1 000 | 850 | 22 |
Optional Accessories
- • Displacement sensor for closed-loop position control
- • Light-curtain safety guard
- • Hydraulic oil cooling / heating unit
- • Floating rails & rolling bolster for quick die change
- • PLC programmable controller + touch-screen
Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

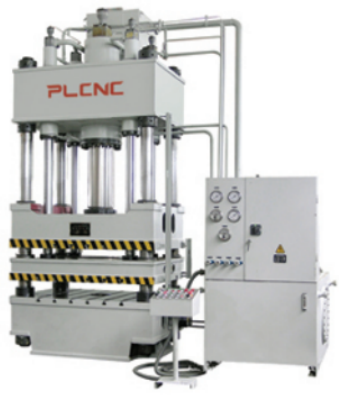

YPL28 Series Double-Action Sheet-Stretching Hydraulic Press
Separate drawing & blank-holder slides; cartridge-valve hydraulics; adjustable draw/blank-holder force; 1 000-26 000 kN range for deep, complex sheet forming of automotive, vessel and appliance parts.
🔧 Performance Features
- ✓ Double-action design: inner slide for drawing, outer slide for blank-holding—ideal for deep & complex parts
- ✓ Two-way cartridge-valve integrated system—large flow, low shock, high reliability
- ✓ PLC electrical control; operator-friendly, fault self-diagnostics
- ✓ Fast idle down, high efficiency, low energy; both drawing & blank-holder pressures infinitely adjustable
- ✓ Suitable for all deep / shallow drawing, flanging, trimming, punching; widely used in auto body, tractor, motorcycle, aerospace, vessel and appliance panels
⚙️ Technical Parameters (Popular Models)
| Model | Nominal Force (kN) | Drawing Force (kN) | Blank-Holder Force (kN) | KO Force (kN) | Drawing Stroke (mm) | Blank-Holder Stroke (mm) | Daylight (mm) | Table Size (mm) | Motor (kW) |
|---|---|---|---|---|---|---|---|---|---|
| YPL28-1000 | 1 000 | 1 000 | 630 | 250 | 800 | 350 | 1 400 | 1 200 × 1 000 | 30 |
| YPL28-2000 | 2 000 | 2 000 | 1 250 | 400 | 1 000 | 450 | 1 800 | 1 500 × 1 200 | 45 |
| YPL28-3150 | 3 150 | 3 150 | 2 000 | 630 | 1 200 | 500 | 2 200 | 1 800 × 1 500 | 75 |
| YPL28-5000 | 5 000 | 5 000 | 3 150 | 1 000 | 1 400 | 600 | 2 600 | 2 200 × 1 800 | 110 |
| YPL28-8000 | 8 000 | 8 000 | 5 000 | 1 600 | 1 600 | 700 | 3 000 | 2 600 × 2 000 | 150 |
| YPL28-12000 | 12 000 | 12 000 | 7 200 | 2 500 | 1 800 | 800 | 3 400 | 3 000 × 2 200 | 220 |
| YPL28-26000 | 26 000 | 26 000 | 18 000 | 6 000 | 2 000 | 1 000 | 4 500 | 3 500 × 2 800 | 2 × 185 |
Optional Accessories
- • Quick die-change trolley & floating rails
- • Blank-holder force closed-loop control (proportional valves)
- • Knock-out (ejector) device with adjustable force & stroke
- • Photoelectric safety curtain + light barrier
- • Touch-screen industrial display & recipe storage
- • Hydraulic heating / cooling unit
- • Stroke, pressure & speed digital display / CNC closed-loop control
Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

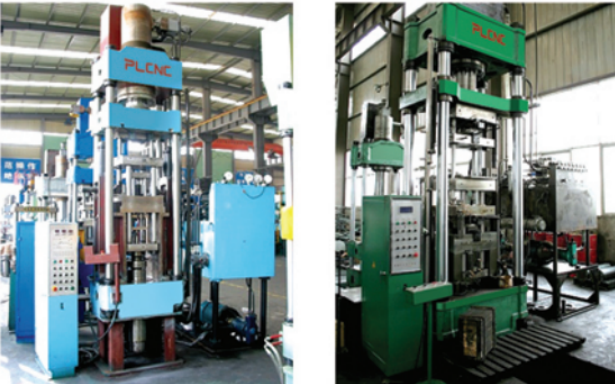

YPL79 Series Fully-Automatic Powder Compacting Hydraulic Press
Frame-type 4-column design; “hand-feed, float-compact, pull-down demould” sequence; PLC control with adjustable pressing force & stroke; 630-5 000 kN range for PM, ceramic, magnetic & carbide parts.
🔧 Performance Features
- ✓ Economic powder-compacting solution: hand-feed, float-compact, pull-down demould
- ✓ Frame-type 4-column structure – high rigidity, reliable, easy tool access
- ✓ PLC control; pressing force & stroke freely adjustable; fixed-pressure & fixed-stroke modes
- ✓ Suitable for ferrous & copper PM, precision ceramics, electronic ceramics, magnetic & carbide parts
- ✓ Optional upper/lower centre cylinders, die-set & powder feeder supplied as turnkey package
⚙️ Technical Parameters (Popular Models)
| Model | Total Force (kN) | Max Compacting Force (kN) | Upper Centre Force (kN) | Lower Centre Force (kN) | Slide Stroke (mm) | Daylight (mm) | Table Size (mm) | Motor (kW) |
|---|---|---|---|---|---|---|---|---|
| YPL79-63 | 630 | 630 | 60 | 35 | 400 | 1 100 | 600 × 600 | 18.5 |
| YPL79-100 | 1 000 | 1 000 | 60 | 35 | 500 | 1 200 | 800 × 800 | 22 |
| YPL79-200 | 2 000 | 2 000 | 80 | 50 | 580 | 1 500 | 1 000 × 1 000 | 22 |
| YPL79-250A | 2 500 | 2 500 | 80 | 200 | 580 | 2 200 | 1 200 × 1 200 | 37 |
| YPL79Z-315 | 3 150 | 3 150 | 100 | 200 | 650 | 2 000 | 1 400 × 1 400 | 37 |
| YPL79Z-500 | 5 000 | 5 000 | 100 | 200 | 650 | 2 000 | 1 600 × 1 600 | 2 × 37 |
Optional Accessories
- • Automatic powder feeder (mechanical or pneumatic)
- • Upper & lower centre cylinders (multi-piston option)
- • Quick-change die-set & floating rails
- • Knock-out (ejector) device with adjustable force & stroke
- • Photoelectric safety curtain + light barrier
- • Touch-screen industrial display & recipe storage
- • Hydraulic heating / cooling unit
- • Stroke, pressure & speed digital display / CNC closed-loop control
Note: The above data is for reference only. If it does not match the actual parameters of the machine tool, the actual parameters shall prevail. The company reserves the final right of interpretation.

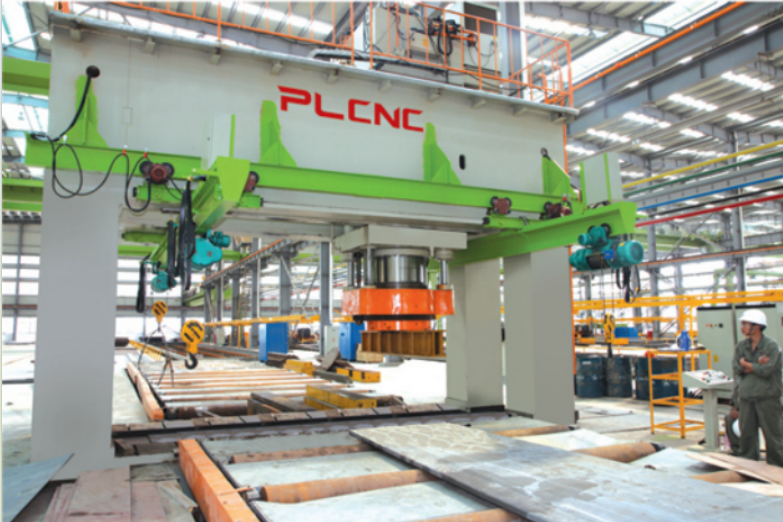

YPL34 Gantry-Type Hydraulic Press
