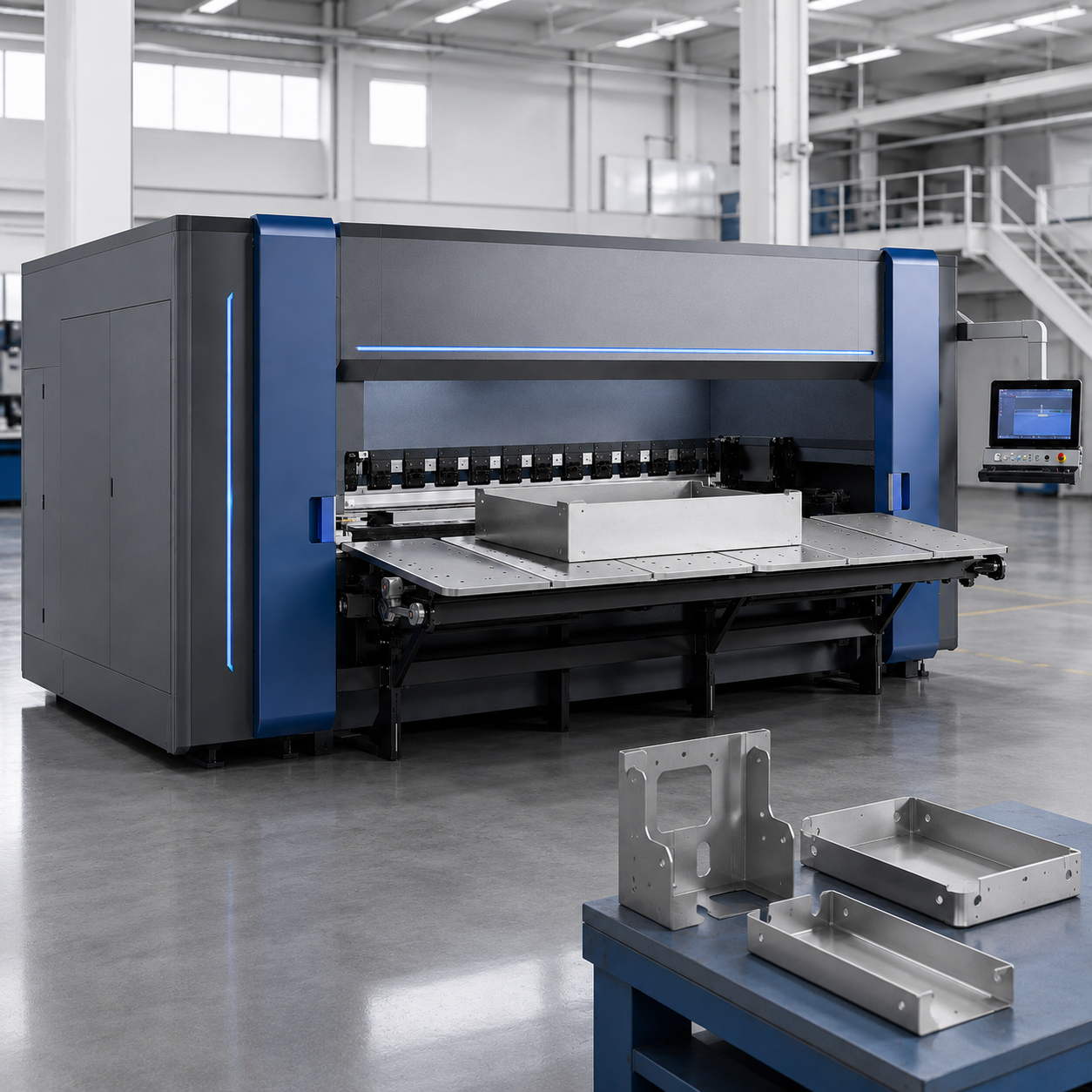

High-Performance Universal Panel Bender

Precision · Efficiency · Automation · Flexibility

Core Advantages

• Full-touch HMI with advanced CNC control: Equipped with powerful industrial CNC systems such as Germany BECKHOFF, offering intuitive operation and high reliability.
• Servo-driven mechanical clamping with flexible positioning: Ensures stable sheet control, precise alignment and excellent adaptability for various part sizes.
• Modern industrial design: Clean and elegant appearance, energy-saving performance, low noise and eco-friendly operation.
• Highly configurable platform: Rich configuration options to meet diverse bending requirements and complex applications.

Key Structures & Functions

1. Transmission & Machine Frame

• Folding beam transmission system: Servo motor with low-backlash planetary reducer and high-precision heavy-duty lead screw drive ensures accurate motion along the programmed path.
• High-rigidity one-piece casting: The main frame is integrally cast and optimized by finite element dynamic analysis to improve stiffness, reduce transmission load and enhance sensitivity and response speed.

2. Mold System

• Compression mold: Quenched and precision-ground mold base ensures long-term accuracy, consistency and stable performance.
• Hinged mold: Ideal for complex-shaped workpieces and compensates for the limitations of fixed compression molds. Pneumatic hinges can lift to avoid contact with sensitive surfaces and prevent scratches.
• Short mold system: Enables partial folding, wrinkle forming and open-edge bending to expand the forming process. Optional independent upper and lower short molds and multi-direction short mold configurations with a unique T-shaped folding beam.
• Fully automatic tool change: Supports rapid size adjustment and automatic mold changing during processing to maximize uptime.

3. Positioning & Feeding

• Positioning device (pressing rod): Supports chamfer positioning and edge positioning. Automatic, safe and easy to operate.
• Rotary feeding device: Servo-controlled mechanical pressing with full-sheet clamping capability and strong adaptability to different material types and thicknesses. Built-in guide rails provide high speed, high accuracy and stable operation.

4. Press Foot

• Various press-foot designs for different sheet materials and sizes.
• Non-metallic press feet available for scratch-sensitive or high-end workpieces.

Germany BECKHOFF CNC System

• Optional 15" / 17" color touch display
• Storage for more than 20,000 programs, data backup via USB
• Offline programming, 2D bending simulation and contour programming (optional)
• Automatic calculation of pressing force, stroke and safe areas
• Convenient and fast adjustment of sizes and angles
• Automated wiring interface (Colina), system diagnostics and a complete bending process library
• Supports hinged molds for complex-shaped workpieces
• Fully automatic tool change with quick setup
• Pneumatic hinges to prevent surface scratches
• Full servo-electric control for energy-saving and high efficiency
