LASER PRETECTION FOR PRESS BRAKE

Why Laser Safety Guarding Is Becoming Essential for High-End CNC Press Brakes

In modern sheet metal fabrication, CNC press brakes are expected to deliver not only accurate bending performance, but also safer operation, higher productivity, and better system integration.

For many workshops, the press brake is one of the most frequently used machines. Operators need to position sheet metal close to the punch and die, especially when producing small parts, boxes, cabinets, enclosures, and precision components. This makes the bending area one of the most critical safety zones in the whole production process.

To reduce operation risks while maintaining bending efficiency, more high-end CNC press brakes are now equipped with laser safety guarding systems, such as the DSP AP+MCS Laser Safety Guarding System.

What Is a Press Brake Laser Safety Guarding System?

A laser safety guarding system is a safety device installed close to the upper tool of a press brake. It creates a precise protection zone around the bending point.

During operation, the system monitors the area near the punch tip. If an operator’s hand, finger, or unexpected object enters the dangerous zone, the system can trigger safety control actions, such as slowing down or stopping the ram movement.

Compared with conventional safety devices, laser guarding is especially suitable for press brakes because it protects the most dangerous area directly: the space between the upper punch and lower die.

Why Traditional Safety Protection Is Not Always Enough

Traditional press brake safety solutions, such as light curtains or mechanical guards, are still widely used. They can provide basic protection, but in some bending applications, they may also create limitations.

For example, when bending small parts or box-shaped components, the workpiece may move upward during bending. This can interrupt the safety beam and cause unnecessary machine stops. In high-volume production, these interruptions reduce efficiency and affect operator experience.

For customers who require higher safety standards, CE-oriented machine configuration, and smoother operation, a laser safety guarding system is often a better choice.

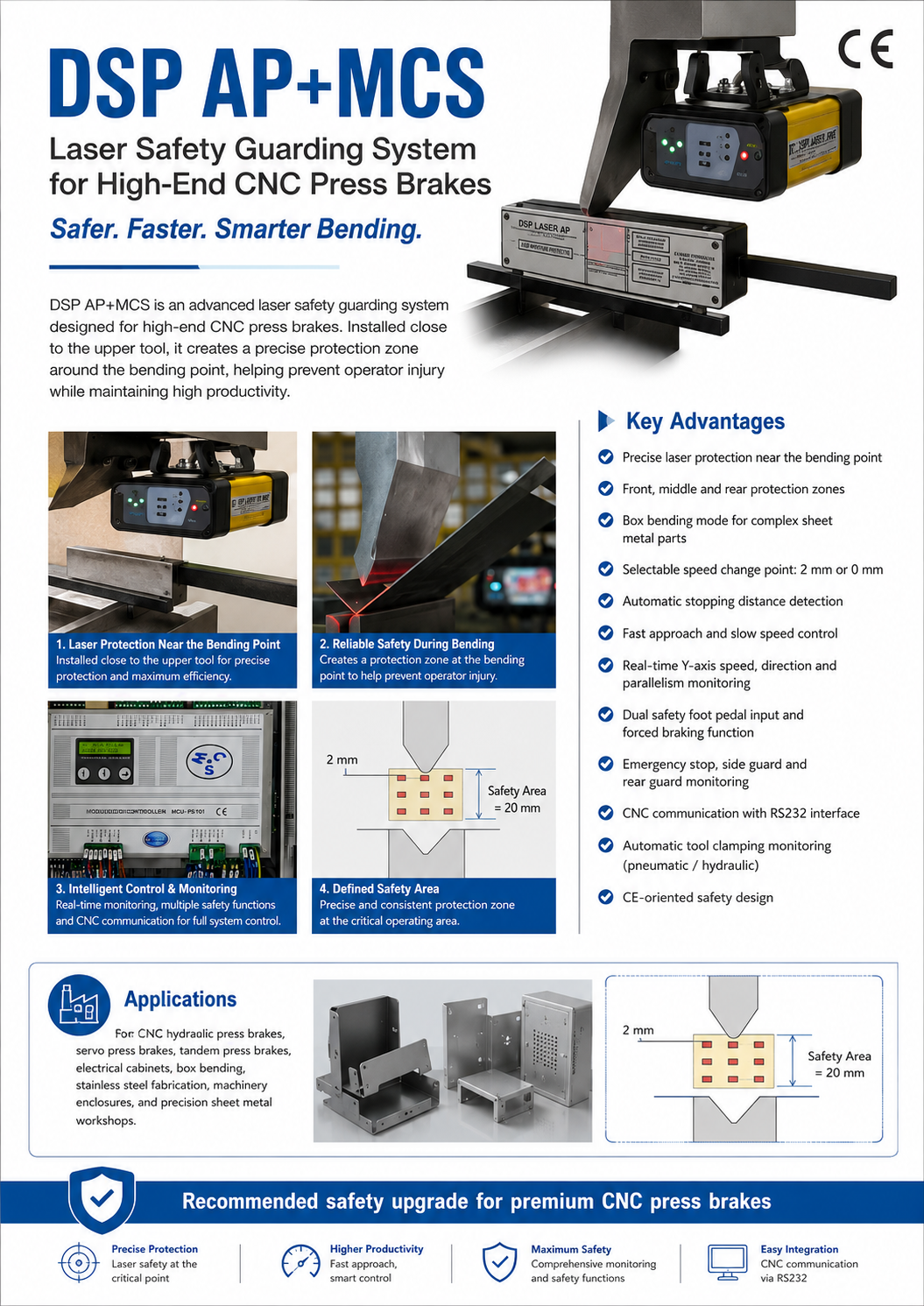

Key Advantages of DSP AP+MCS Laser Safety Guarding System

1. Precise Protection Near the Bending Point

The DSP AP+MCS system is installed close to the upper tool. It monitors the area near the punch tip and creates front, middle, and rear protection zones.

This allows the system to detect potential danger directly at the bending point, instead of only monitoring a larger area away from the tool.

For operators, this means safer handling during sheet positioning and bending. For factories, this means a more professional and reliable safety configuration.

2. Higher Productivity with Fast Approach Control

One of the biggest concerns about press brake safety devices is productivity. If the machine has to slow down too early, each bending cycle becomes longer. Over a full working day, this can significantly affect production efficiency.

DSP AP+MCS supports selectable speed change points, such as 2 mm or 0 mm. This allows the press brake to maintain fast approach for a longer stroke and switch to slow speed only when necessary.

The result is a better balance between safety and efficiency.

3. Suitable for Box Bending and Complex Sheet Metal Parts

Box bending is common in the production of electrical cabinets, control panels, machinery enclosures, kitchen cabinets, stainless steel boxes, and sheet metal housings.

During box bending, the workpiece shape can easily interfere with ordinary safety protection. DSP AP+MCS provides a dedicated box bending mode, helping reduce unnecessary interruptions during complex bending operations.

This makes it especially useful for workshops producing cabinets, enclosures, and customized sheet metal parts.

4. Real-Time Monitoring of Y-Axis Movement

High-end press brakes usually use Y1/Y2 axis control to ensure ram parallelism and bending accuracy.

DSP AP+MCS supports real-time monitoring of Y-axis speed, movement direction, and parallelism. This helps improve the safety logic of the whole press brake system, rather than treating the laser device as an isolated accessory.

5. Complete Safety Chain Integration

A professional press brake safety system should not only detect the bending area. It should also be integrated with the machine’s overall safety chain.

When Should You Choose Laser Safety Guarding?

Laser safety guarding is especially recommended when the customer requires a high-end CNC press brake configuration, CE-oriented safety design, better operator protection, higher bending productivity, box bending, tandem press brake operation, servo press brake configuration, or automatic tool clamping system.

For basic low-cost press brakes, standard light curtain protection may still be acceptable. However, for premium machines and professional sheet metal workshops, laser safety guarding is a valuable upgrade.

Applications

Why It Matters for Press Brake Buyers

When purchasing a CNC press brake, many buyers focus mainly on bending force, bending length, CNC controller, tooling, crowning system, and hydraulic components.

These are all important. But safety configuration should not be ignored.

A good laser safety system can help reduce operation risks, improve machine professionalism, support CE-oriented configuration, improve operator confidence, reduce unnecessary production stoppage, and make the press brake more suitable for high-end markets.

For international buyers, especially those from Europe, the Middle East, South America, and professional fabrication industries, safety configuration is increasingly becoming part of the machine’s value.

Conclusion

The DSP AP+MCS Laser Safety Guarding System is more than a safety accessory. It is an important upgrade for high-end CNC press brakes.

By combining precise laser protection, fast approach control, box bending mode, Y-axis monitoring, emergency stop monitoring, CNC communication, and automatic tool clamping monitoring, it helps press brake users achieve safer and more efficient bending production.

For customers who are looking for a premium CNC press brake configuration, DSP AP+MCS is a recommended safety upgrade.
